Measurement:
- Moisture
- Ambient temperature
Typical Materials:
- Concrete
- Sand
- Stone
- Other Aggregates
Unique Key Features:
- Rugged, hard-wearing design for abrasive materials.
- Simple installation in mixers and conveyors.
- Choice of measurement modes for optimum sensor performance.
Belt Conveyor
- Install into the Hydro-Skid over the surface of the material travelling along a conveyor belt.
Planetary Mixer
- Mount in the floor of the mixer.
Single /Twin Shaft Mixer
- Position 30° from vertical on the upstroke of the blade. If this is not possible, the downstroke can be used.
Turbo Mixer
- Position in the base of the mixer, 2/3 distance from the mixer centre to the side wall.

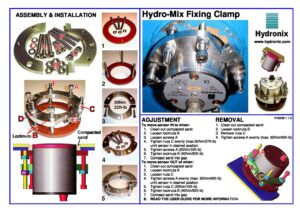

0021 Hydro-Mix – Fixing Plate, Mild Steel
0960 Hydro-Mix – Fixing Plate (316 Stainless Steel)

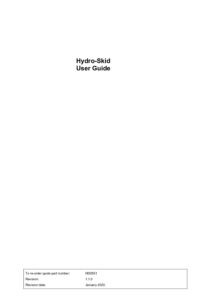

HS02 Hydro-Skid Pantograph Arm for mounting the Hydro-Mix Sensor upon flowing material on a conveyor
0033 Hydro-Mix – Adjustable Clamp Ring (spare if required)
0035 Hydro-Mix Blanking Plate

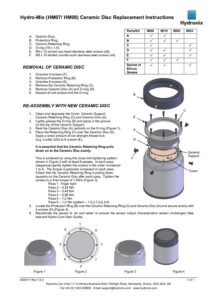

0900 Hydro-Mix Replacement Ceramic Disc and Protection Ring Kit (incl. Ceramic Retaining Ring and all fixings)
0910 Hydro-Mix Replacement Ceramic Disc and Protection Ring Kit
0930 Hydro-Mix Replacement Protection Ring, with fixings
0935 Hydro-Mix Replacement Ceramic Retaining Ring Kit (incl. screws, ‘O’ ring and grease)
0975A 4m Sensor Cable
0975AT Sensor Cable with Network Termination (4, 10, 25 and 50m)
0021 Hydro-Mix – Fixing Plate, Mild Steel
0960 Hydro-Mix – Fixing Plate (316 Stainless Steel)
HS02 Hydro-Skid Pantograph Arm for mounting the Hydro-Mix Sensor upon flowing material on a conveyor
0033 Hydro-Mix – Adjustable Clamp Ring (spare if required)
0035 Hydro-Mix Blanking Plate
0900 Hydro-Mix Replacement Ceramic Disc and Protection Ring Kit (incl. Ceramic Retaining Ring and all fixings)
0910 Hydro-Mix Replacement Ceramic Disc and Protection Ring Kit
0930 Hydro-Mix Replacement Protection Ring, with fixings
0935 Hydro-Mix Replacement Ceramic Retaining Ring Kit (incl. screws, ‘O’ ring and grease)
0975A 4m Sensor Cable
0975AT Sensor Cable with Network Termination (4, 10, 25 and 50m)
Modbus to control system
Input / Output connections
Recommended field cabling:
- Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
- Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
- Recommended cable types: Belden 8306, Alpha 6373
- Maximum cable run: 100m, separate to any heavy equipment power cables
