Hydro-Control

Water Controller

Installation Points:

  • Panel mount or enclosure fixing

Unique Key Features:

  • Stand alone unit designed for the accurate addition of water into a mixer.
  • 10.1" LCD colour display touch screen.
  • Different operating modes for each recipe.
  • Over 99,000 recipes can be stored.
  • Suitable for new and retrofit systems.
  • Designed to work with all common forms of water addition to a mixer.
  • System integration - ethernet, WEB API and RS232 communication.
  • Remote connection for diagnostics and support.
  • 7025 HC07 Replacement System Card

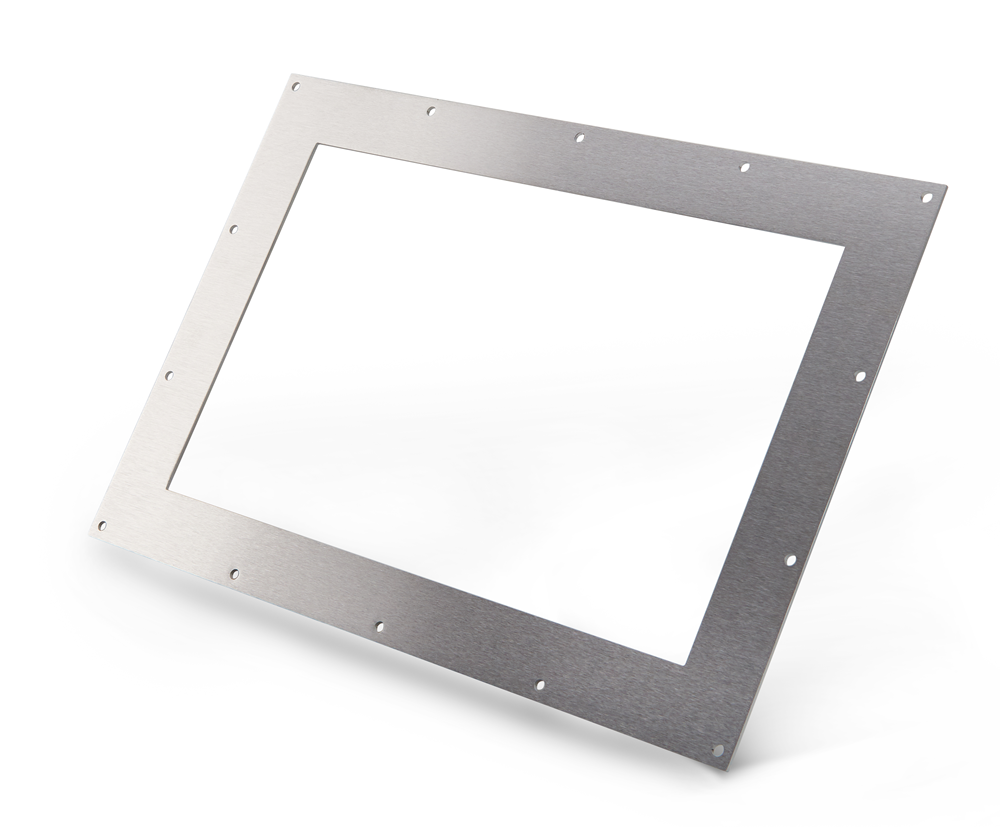

  • 7050 Hydro-Control Model HC06 to HC07 adapter plate

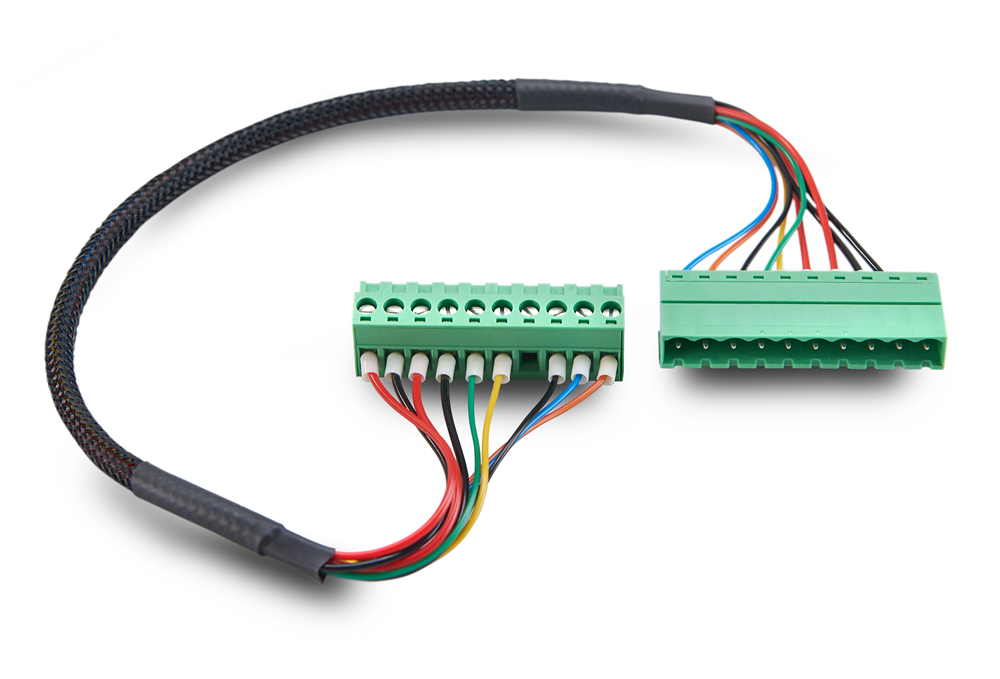

  • 7060 Hydro-Control Model HC06 to HC07 adapter cable

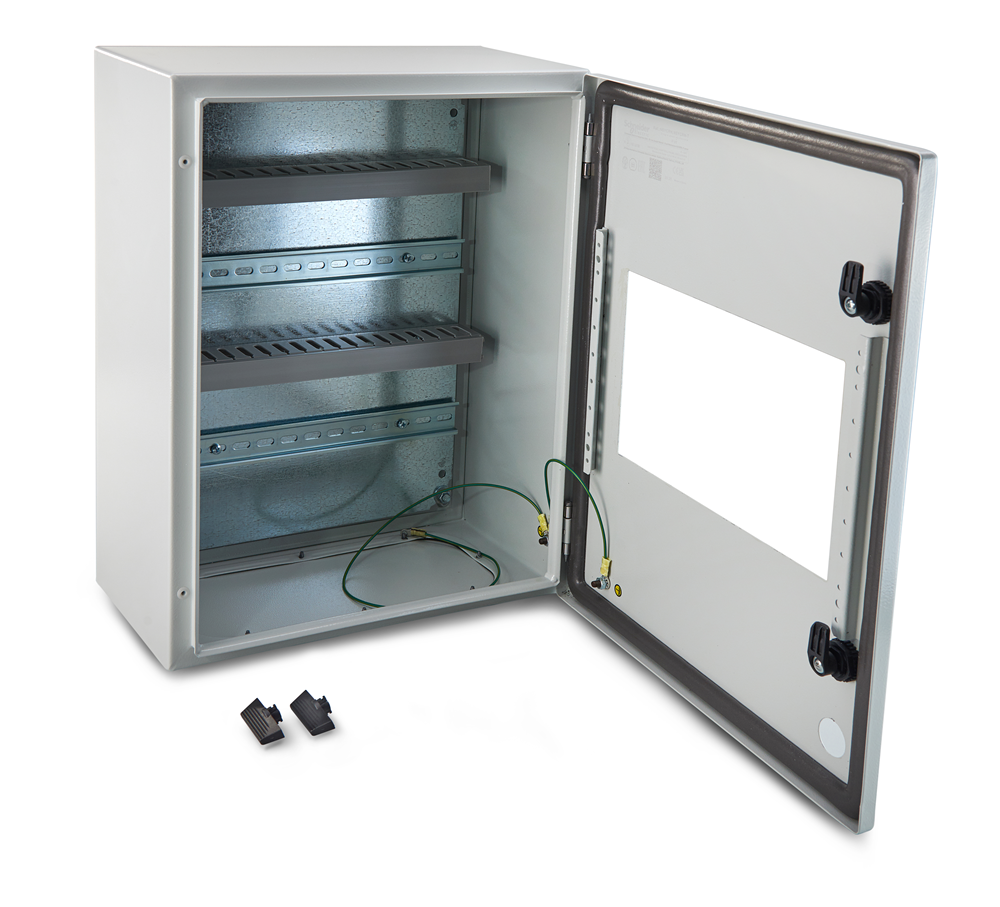

  • 7100 HC07 Wall Mounting Enclosure for Hydro-Control Unit IP66 (NEMA4)

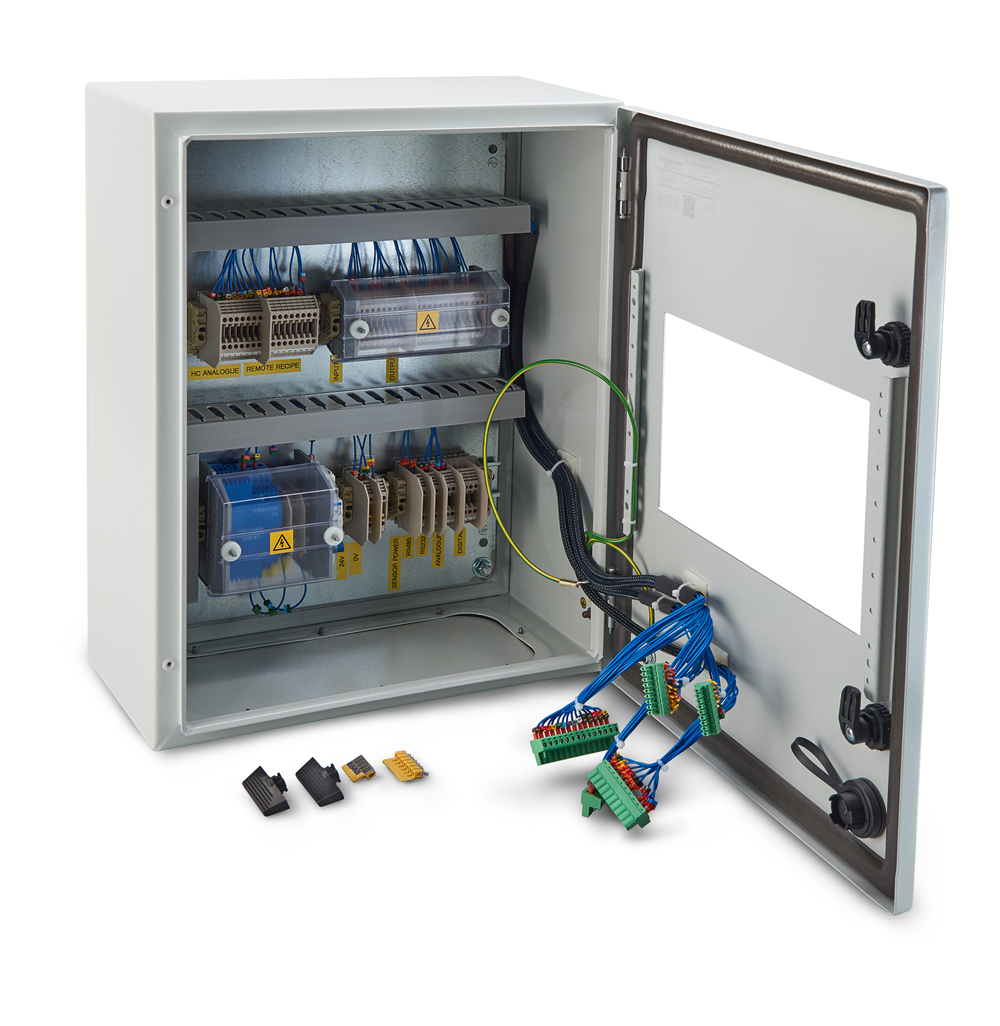

  • 7200 HC07 Control Cabinet (pre-wired for easy connection to field wiring)
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables
