安装点:
- 面板安装或机柜安装
独特重要功能:
- 该独立设备设计用于准确控制搅拌材料的加水量。

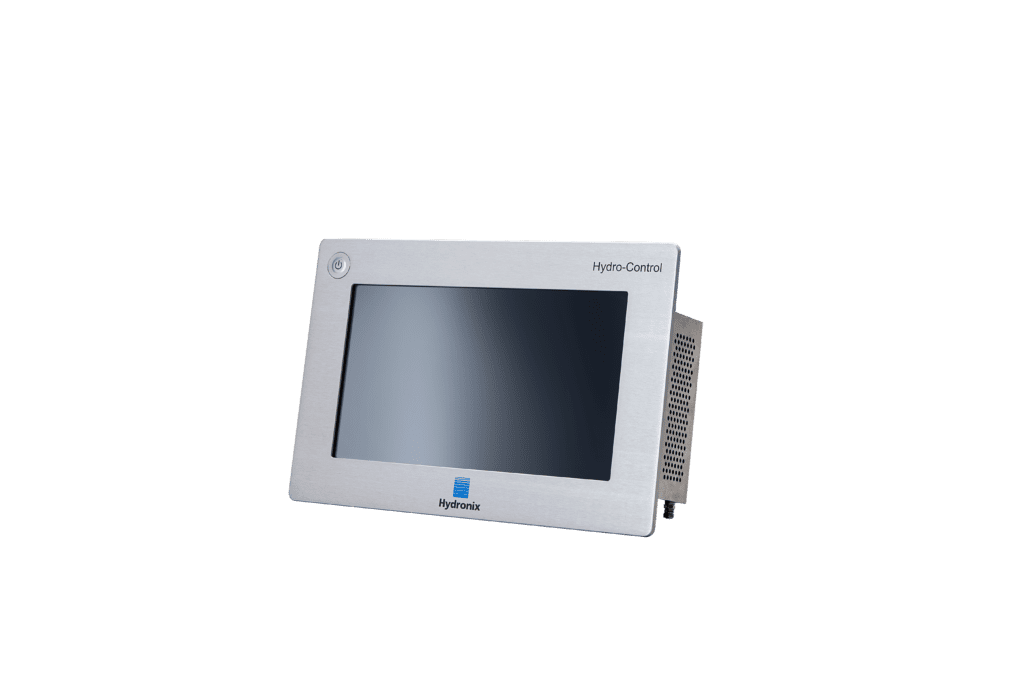

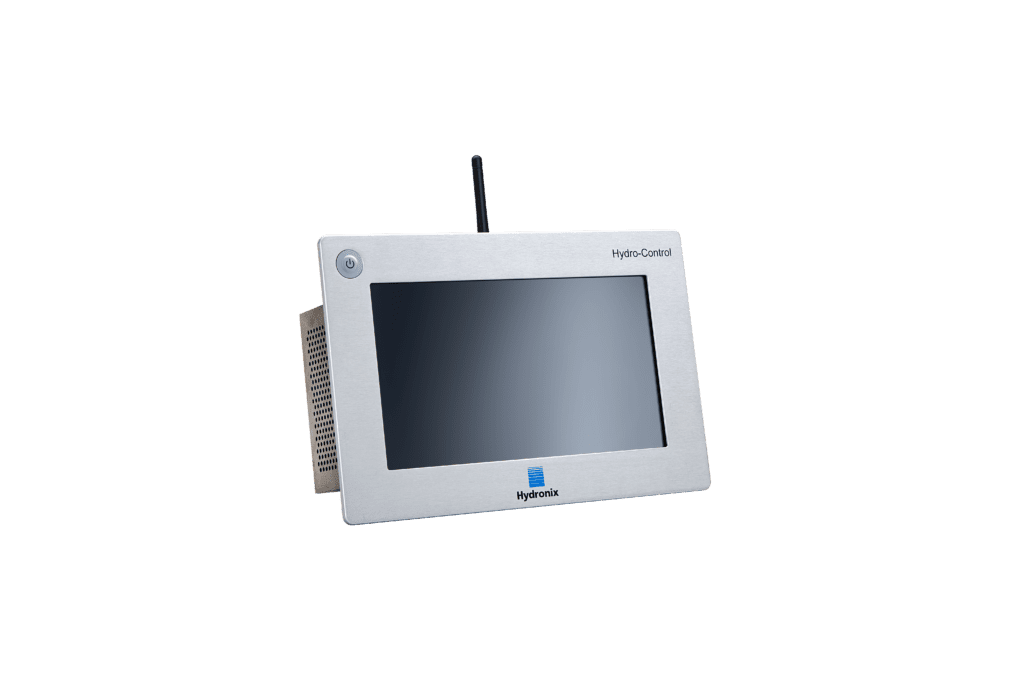

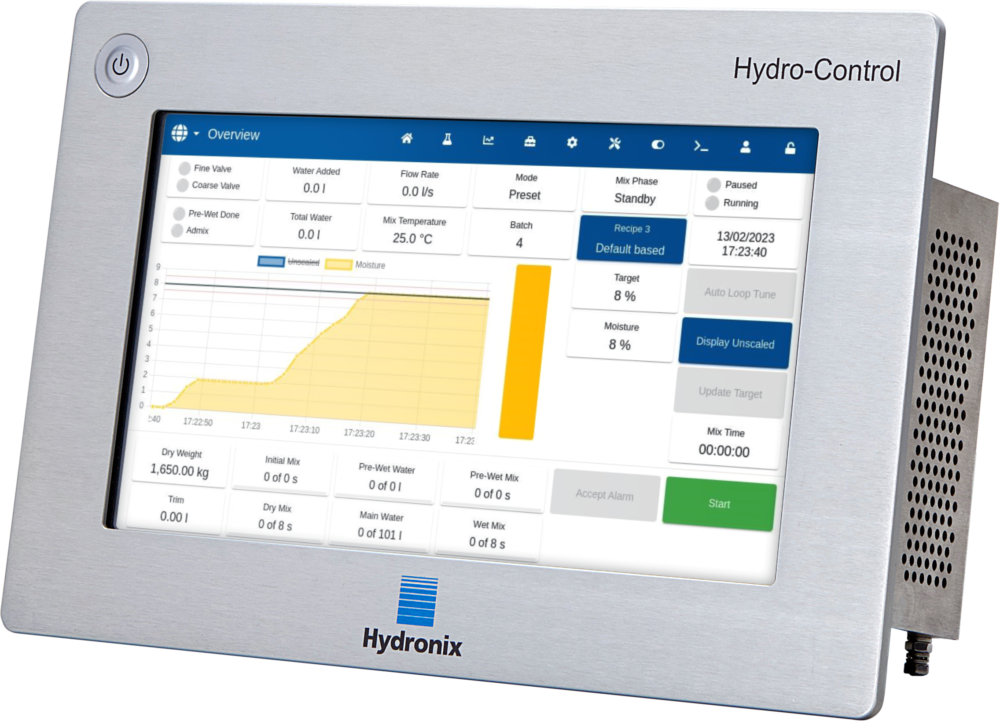

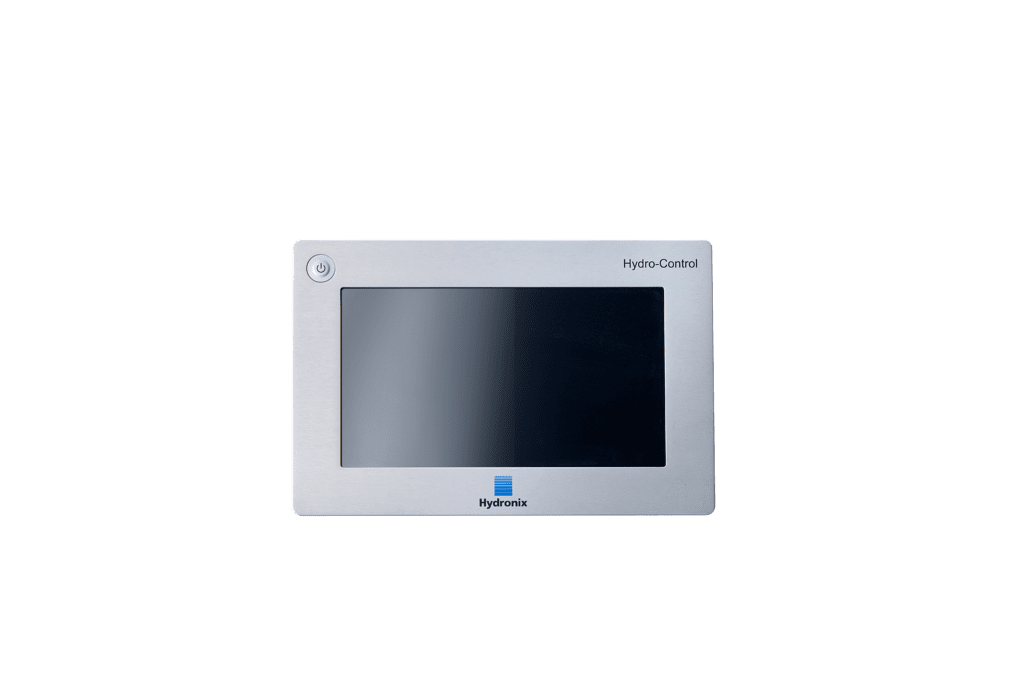

- 10.1 英寸 LCD 彩色显示触摸屏。
- 每个配方具有不同的操作模式。
- 可以存储超过 99,000 个配方。
- 适用于新系统和改造系统。
- 设计用于搅拌材料的所有常见加水形式。
- 系统集成 - 以太网、WEB API 和 RS232 通信。
- 用于诊断和支持的远程连接。
- 7025 HC07 更换系统卡
- 7050 Hydro-Control 型号 HC06 至 HC07 适配器板
- 7060 Hydro-Control 型号 HC06 至 HC07 适配器电缆
- 7100 HC07 Hydro-Control 装置壁挂式机柜，IP66 (NEMA4)
- 7200 HC07 控制柜（已预先布线以便轻松连接到现场线路）
- Digital Technology
- Digital technology provides precise, linear moisture measurement.
- Advanced Digital Signal Processing
- The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
- Measurement Modes
- Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
- Fully Temperature Compensated Measurement
- The sensor internally adjusts for mechanical changes due to temperature fluctuations
- Easy to Interface
- Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
- Fast Measurement
- Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
- Temperature Measurement
- Temperature output is available to provide a readout of material temperature.
- Accuracy of Measurement
- All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
- Sensor Configuration
- Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
- Calibration
- The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
- Simple Power Requirements
- The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus，用于控制系统

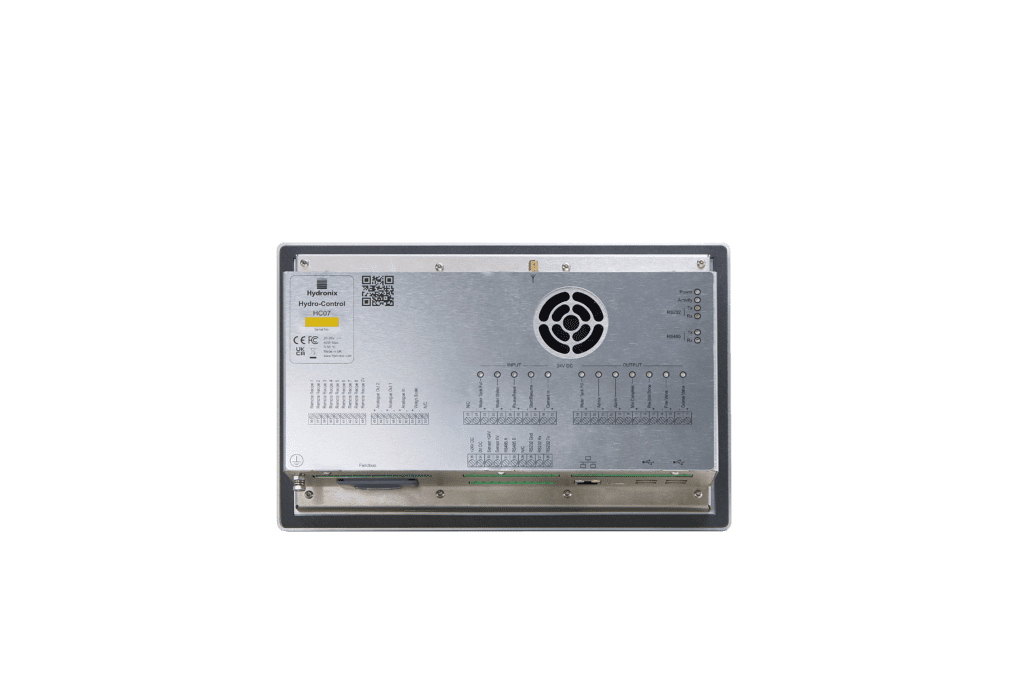

输入/输出连接
推荐的现场布线方式:
- 六对双绞线（共 12 芯）屏蔽电缆，带 22 AWG、0.35mm2 的导体
- 屏蔽：编织屏蔽层（最低 65% 的覆盖面积）加铝/聚酯薄膜
- 推荐的电缆类型：Belden 8306, Alpha 6373
- 电缆最大长度：100m，与其他重型设备供电电缆区分
