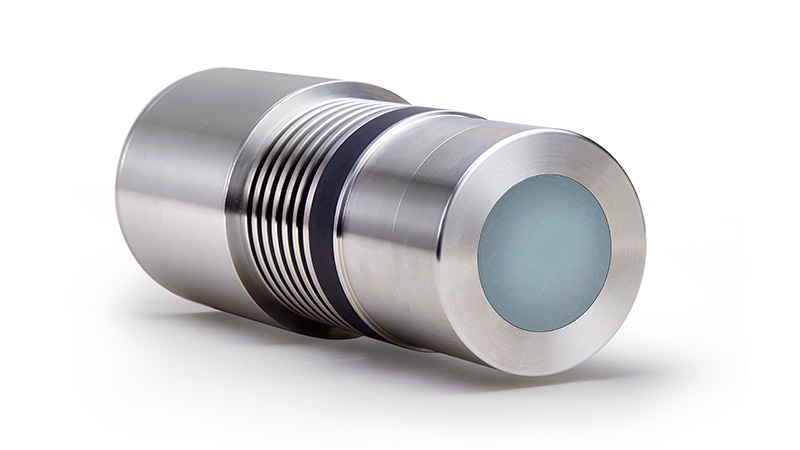

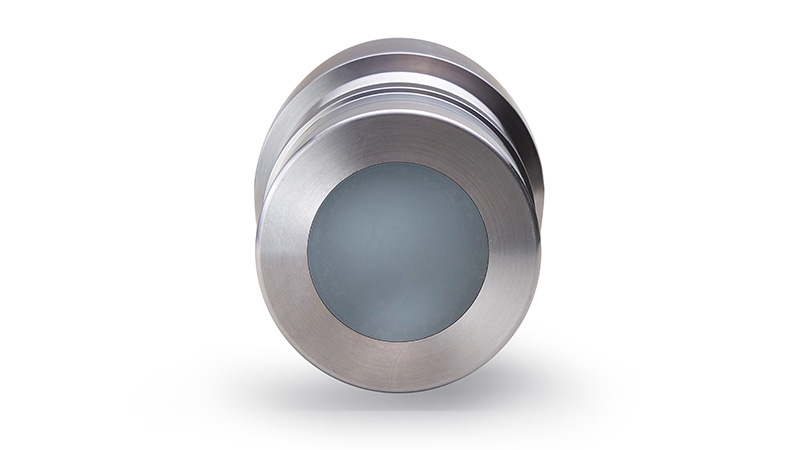

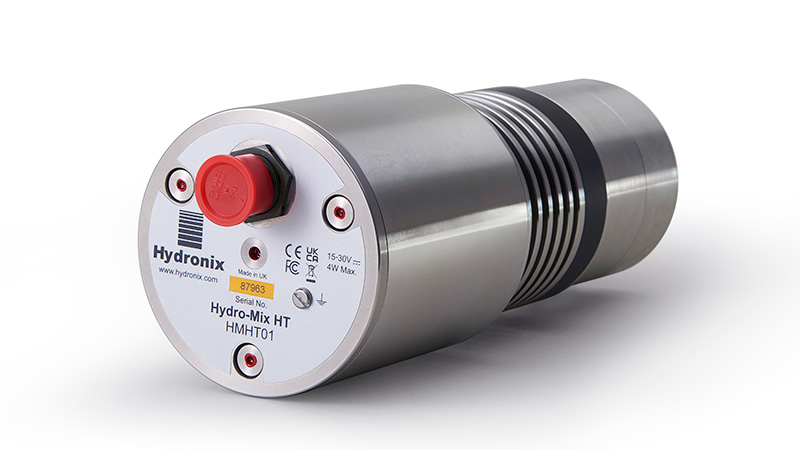

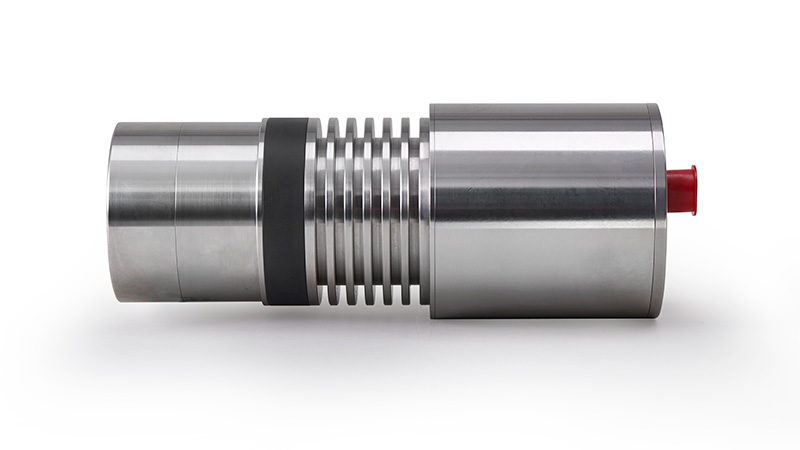

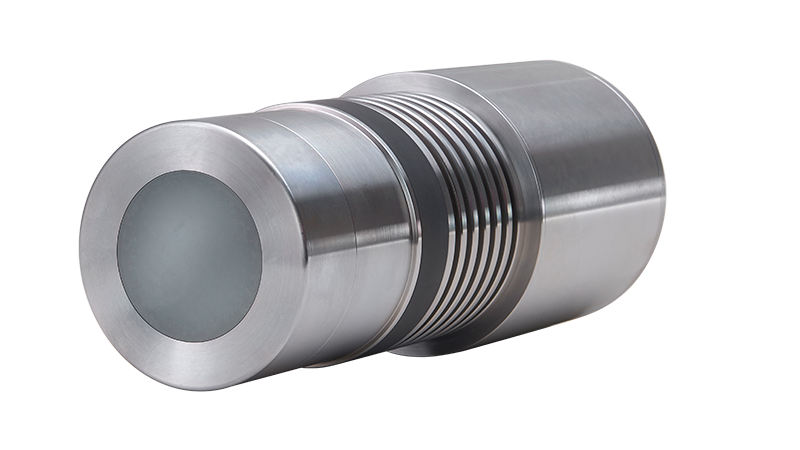

Hydro-Mix HT

湿度传感器:处理温度范围高达 120°C

测量:

  • 湿度
  • 环境温度

典型材料:

  • 动物饲料
  • 谷物
  • 生物质
  • 有机物料
  • 农业物料

独特重要功能:

  • 高温传感器,工作温度范围高达 120℃。
  • 可选择测量模式以获得最佳传感器性能。
  • 采用暗装方式安装在干燥机、搅拌机底面、管道或传送机之前或之后。

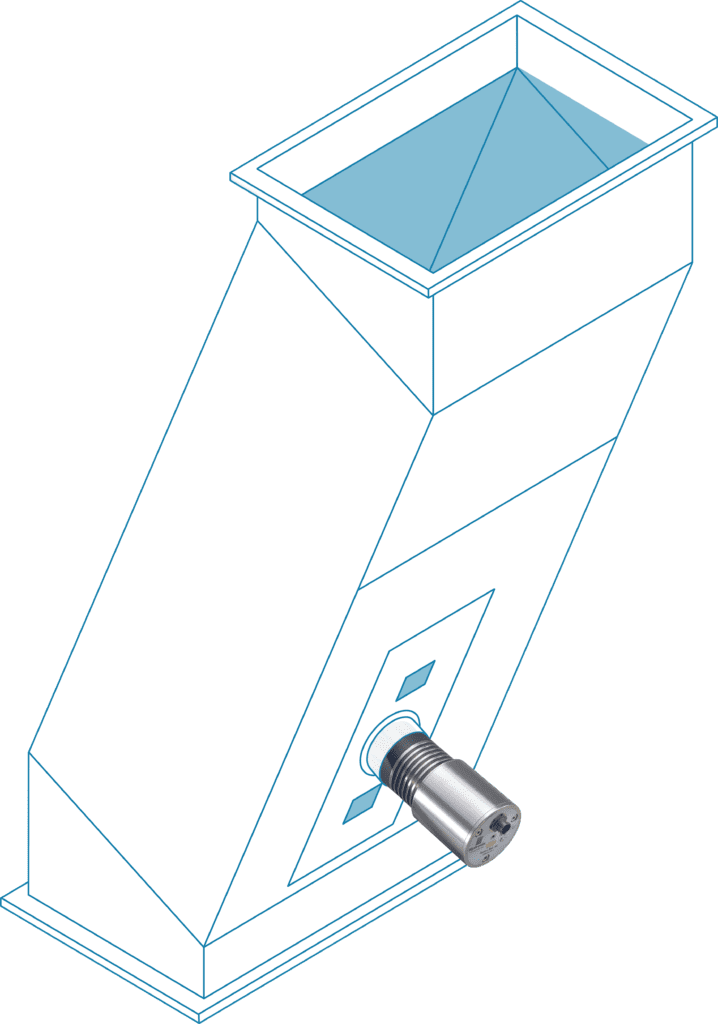

管道系统

  • 可安装在较大的管道或斜槽中,为测量形成一致的物料流。

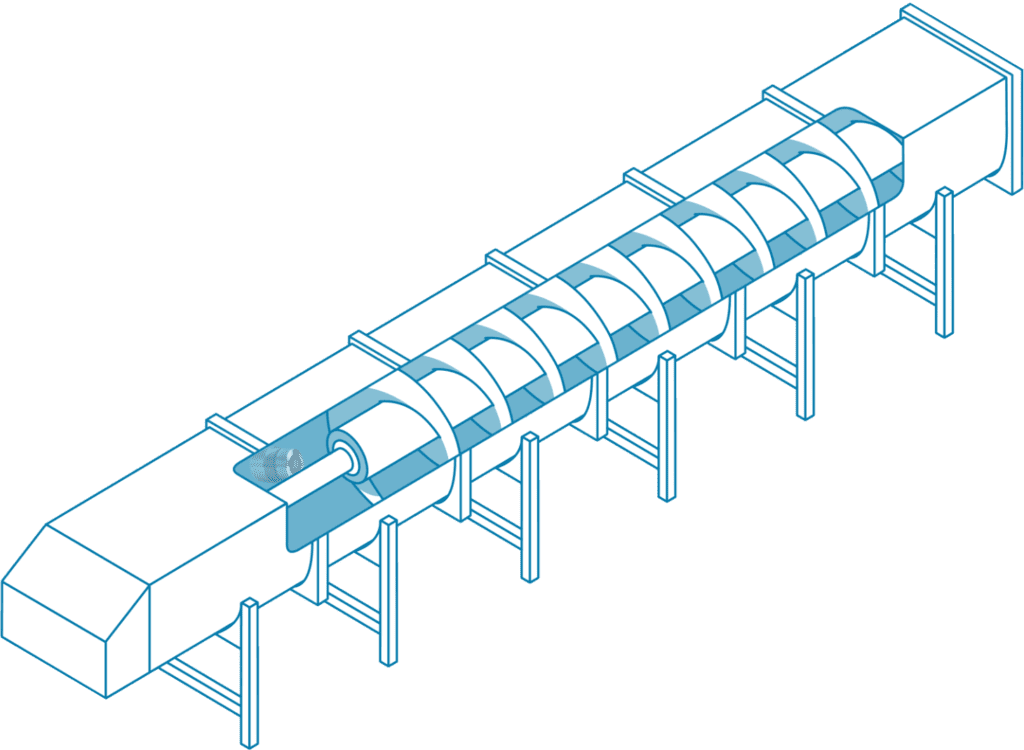

螺旋传送机

  • 位于桨片上方,与垂直方向成 30°。

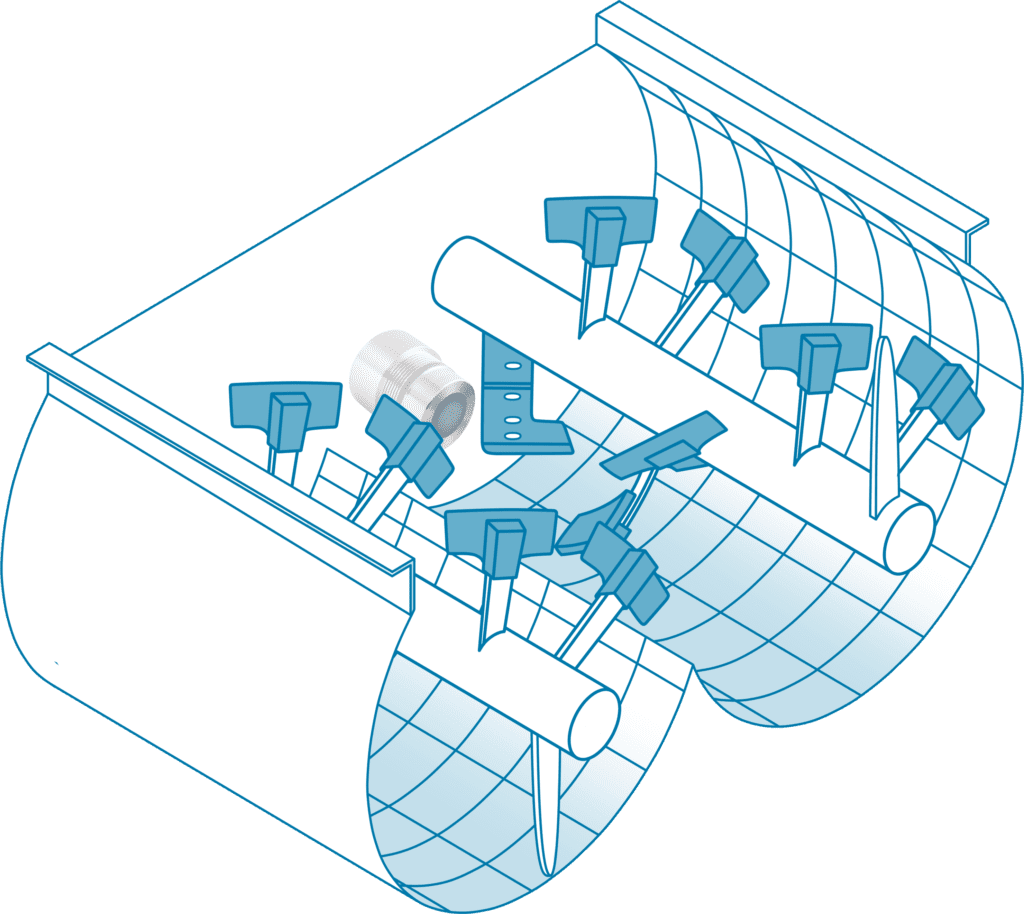

单轴/双轴搅拌机

  • 位于桨片上方,与垂直方向成 30°。如果无法实现这一点,可以置于桨片下方。
  • DSVHT01 HMHT 管道系统 – 垂直。
  • DSAHT01 HMHT 管道系统 – 倾斜。
  • 4010 HMHT 固定板。
  • 4020 HMHT 卡圈(包括 HMHT 固定板螺栓)
  • 0975A 4m 传感器电缆
  • 0975AT 带网络终端的传感器电缆(4、10、25 和 50m)
Digital Technology
Digital technology provides precise, linear moisture measurement.
Advanced Digital Signal Processing
The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
Measurement Modes
Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
Fully Temperature Compensated Measurement
The sensor internally adjusts for mechanical changes due to temperature fluctuations
Easy to Interface
Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
Fast Measurement
Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
Temperature Measurement
Temperature output is available to provide a readout of material temperature.
Accuracy of Measurement
All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
Sensor Configuration
Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
Calibration
The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
Simple Power Requirements
The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus,用于控制系统
输入/输出连接
推荐的现场布线方式:
  • 六对双绞线(共 12 芯)屏蔽电缆,带 22 AWG、0.35mm2 的导体
  • 屏蔽:编织屏蔽层(最低 65% 的覆盖面积)加铝/聚酯薄膜
  • 推荐的电缆类型:Belden 8306, Alpha 6373
  • 电缆最大长度:100m,与其他重型设备供电电缆区分

咨询事宜 Hydro-Mix HT
