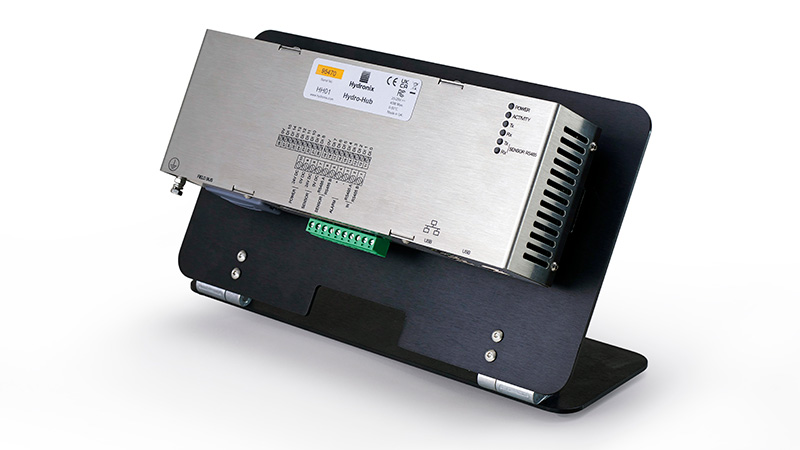

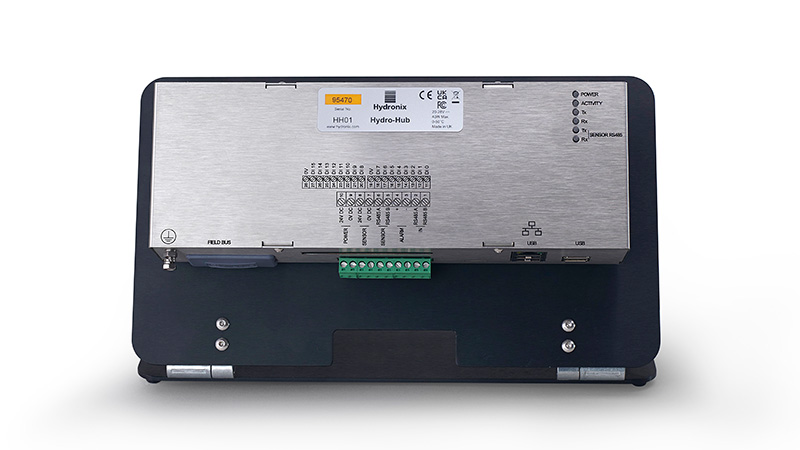

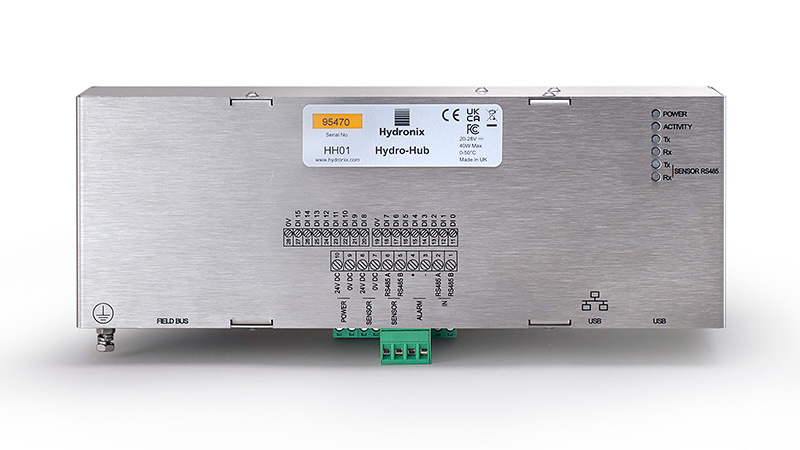

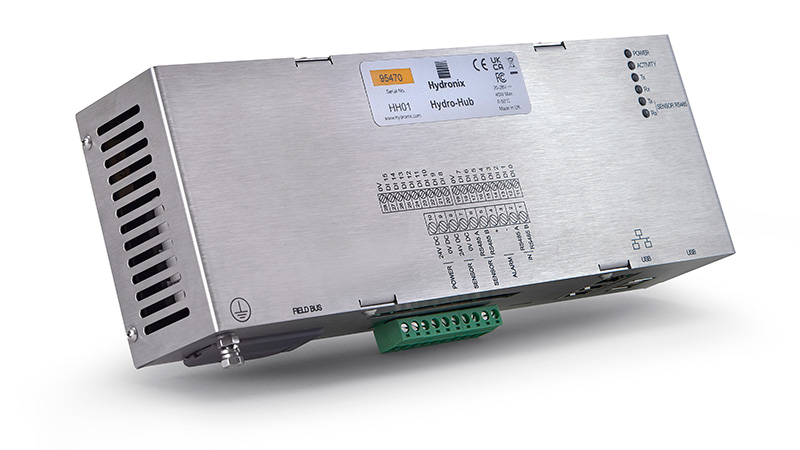

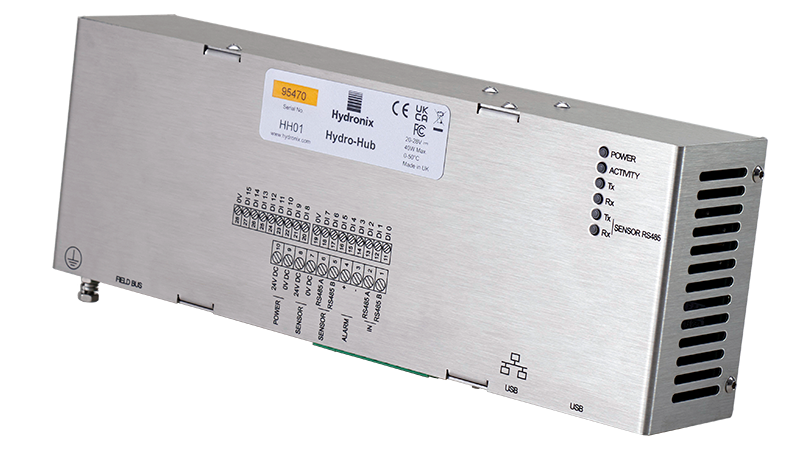

Hydro-Hub

可将 Hydronix 传感器轻松连接到办公室和场地总线网络

安装点:

  • DIN 导轨安装,符合IEC/EN 60715 标准。

独特重要功能:

  • 通过现代网页浏览器查看数据并管理 Hydronix 传感器。
  • 可同时将多达 16 个 Hydronix 传感器的网络与多个系统连接在一起。
  • 可轻松安装在新系统或现有系统中
  • 实时显示可查看多达 6 个传感器的测量值。
  • 远程校准和配置 Hydronix 传感器。
  • 每个传感器 256 次校准
  • 以太网端口,带有网页浏览器界面/网页 API。
  • 适用于 DIN 导轨安装。
  • 1187 PROFIBUS 模块
  • 1188 以太网/IP 模块
  • 1189 PROFINET 模块
  • 1190 数字输入扩展卡
Digital Technology
Digital technology provides precise, linear moisture measurement.
Advanced Digital Signal Processing
The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
Measurement Modes
Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
Fully Temperature Compensated Measurement
The sensor internally adjusts for mechanical changes due to temperature fluctuations
Easy to Interface
Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
Fast Measurement
Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
Temperature Measurement
Temperature output is available to provide a readout of material temperature.
Accuracy of Measurement
All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
Sensor Configuration
Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
Calibration
The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
Simple Power Requirements
The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.

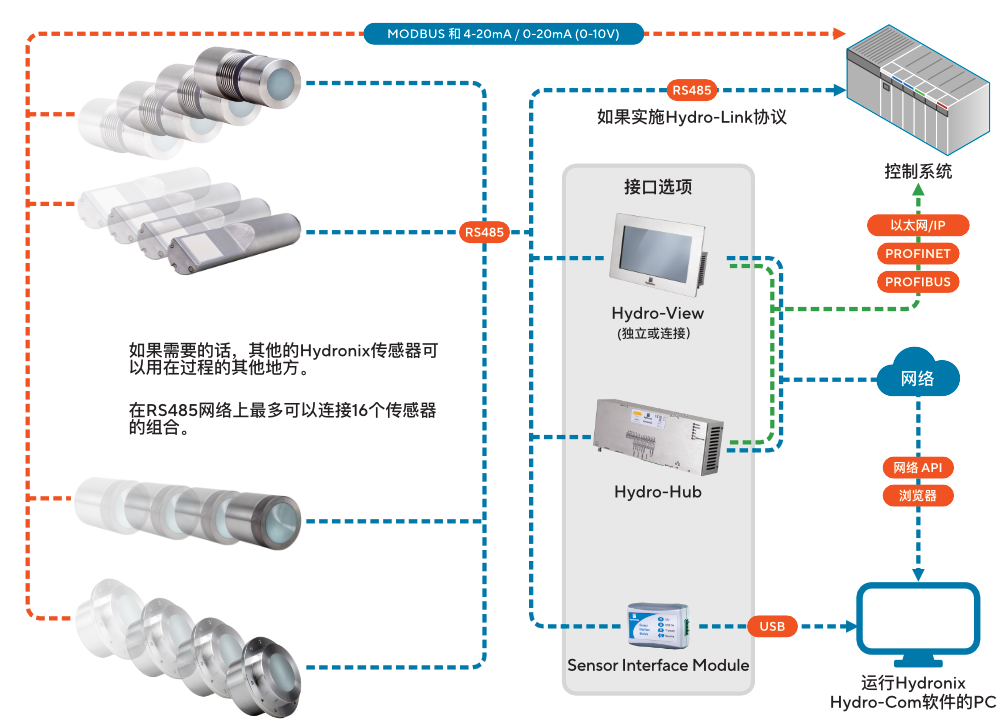

Modbus,用于控制系统

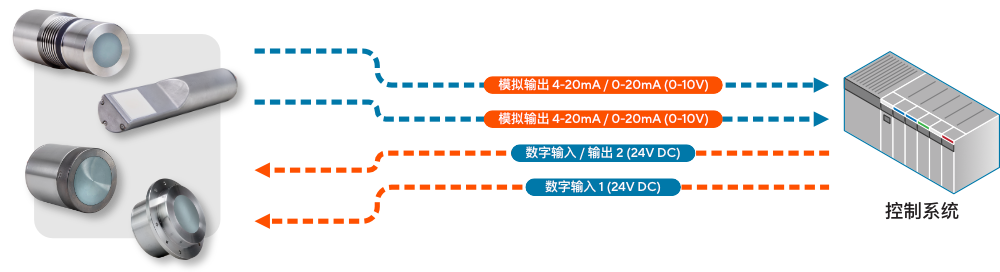

输入/输出连接
推荐的现场布线方式:
  • 六对双绞线(共 12 芯)屏蔽电缆,带 22 AWG、0.35mm2 的导体
  • 屏蔽:编织屏蔽层(最低 65% 的覆盖面积)加铝/聚酯薄膜
  • 推荐的电缆类型:Belden 8306, Alpha 6373
  • 电缆最大长度:100m,与其他重型设备供电电缆区分
