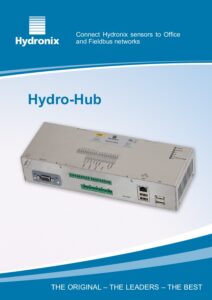

Hydro-Hub

Easily connect Hydronix sensors to office and fieldbus networks

Installation Points:

  • DIN rail mounting to IEC/EN 60715.

Unique Key Features:

  • View data and manage Hydronix Sensors through modern web browsers.
  • Connects a network of up to 16 Hydronix sensors with multiple systems simultaneously.
  • Easy to install in new or existing systems
  • Live display to view measurements of up to 6 sensors.
  • Calibrate and configure Hydronix sensors remotely.
  • 256 calibrations per sensor
  • Ethernet Port with web browser interface / Web API.
  • DIN Rail mountable.

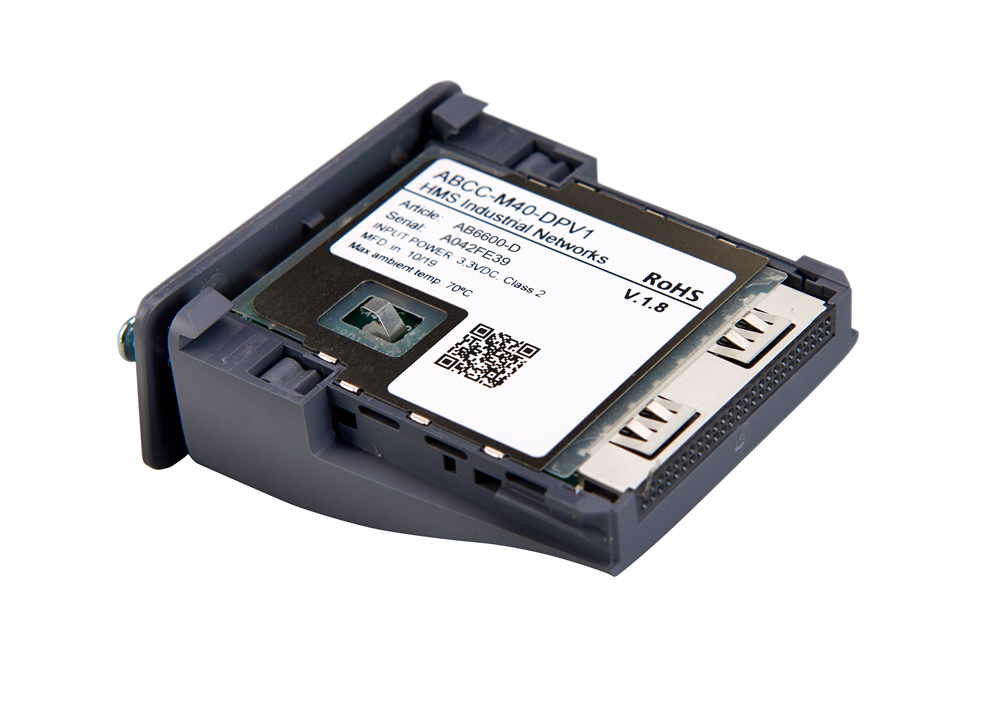

  • 1187 PROFIBUS Module

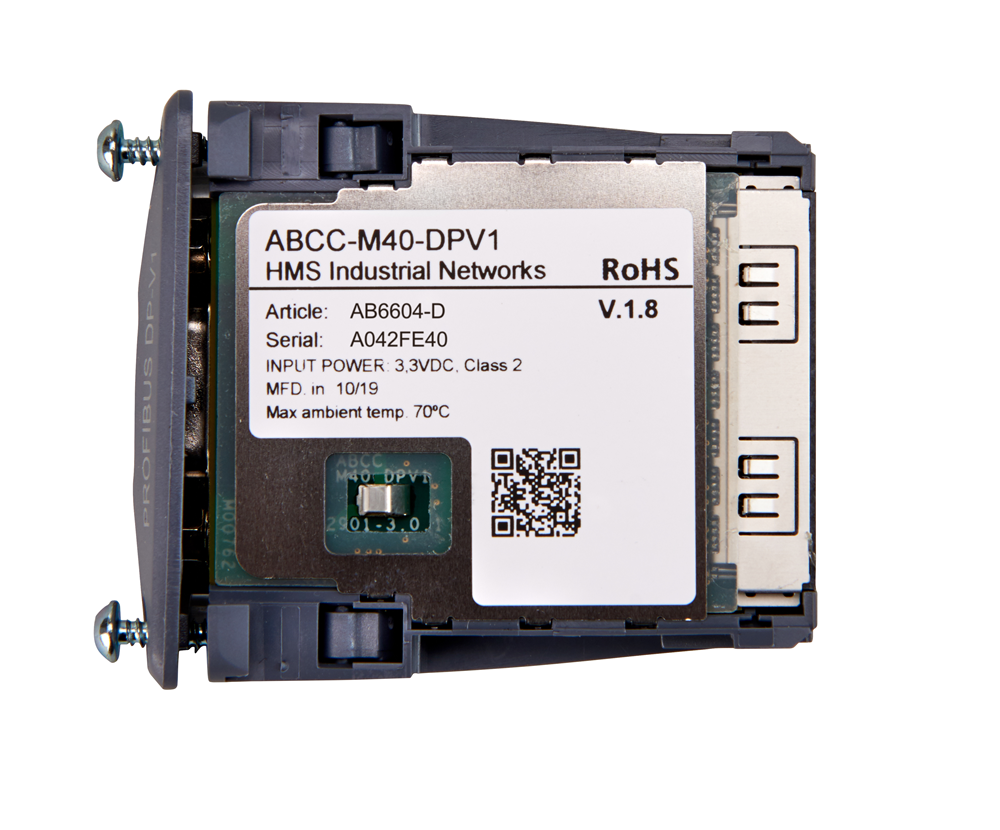

  • 1188 Ethernet/IP Module
  • 1189 PROFINET Module

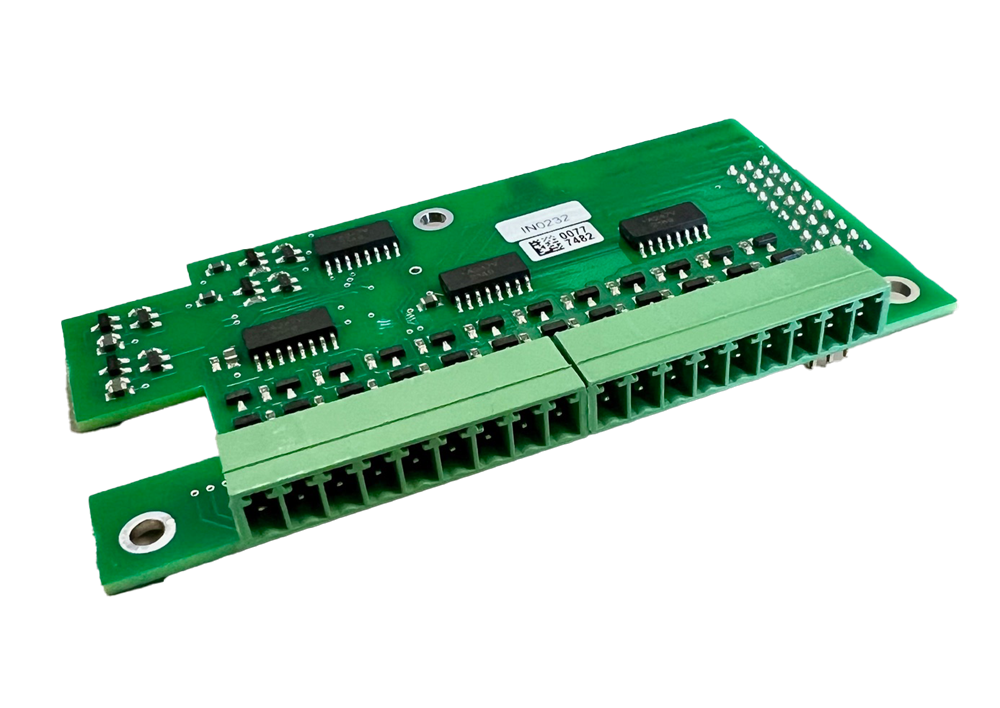

  • 1190 Digital Input Expansion Card
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables
