Hydro-Mix HT

Moisture sensor: Process temperature range up to 120°C

Measurement:

  • Moisture
  • Ambient temperature

Typical Materials:

  • Animal feed
  • Grain
  • Biomass
  • Organic material
  • Agricultural material

Unique Key Features:

  • High temperature sensor for operating temperature range of up to 120°C.
  • Choice of measurement modes for optimum sensor performance.
  • Fitted flush before or after dryers, the floor of mixers, ducting or conveyors.

Ducting System

  • Install into a larger duct or chute to create a consistent material flow for measurement.

Screw Conveyor

  • Position on the upstroke of the blade at 30° from vertical.

Single/Twin Shaft Mixer

  • Position on the end wall of the mixer, 30° from vertical.

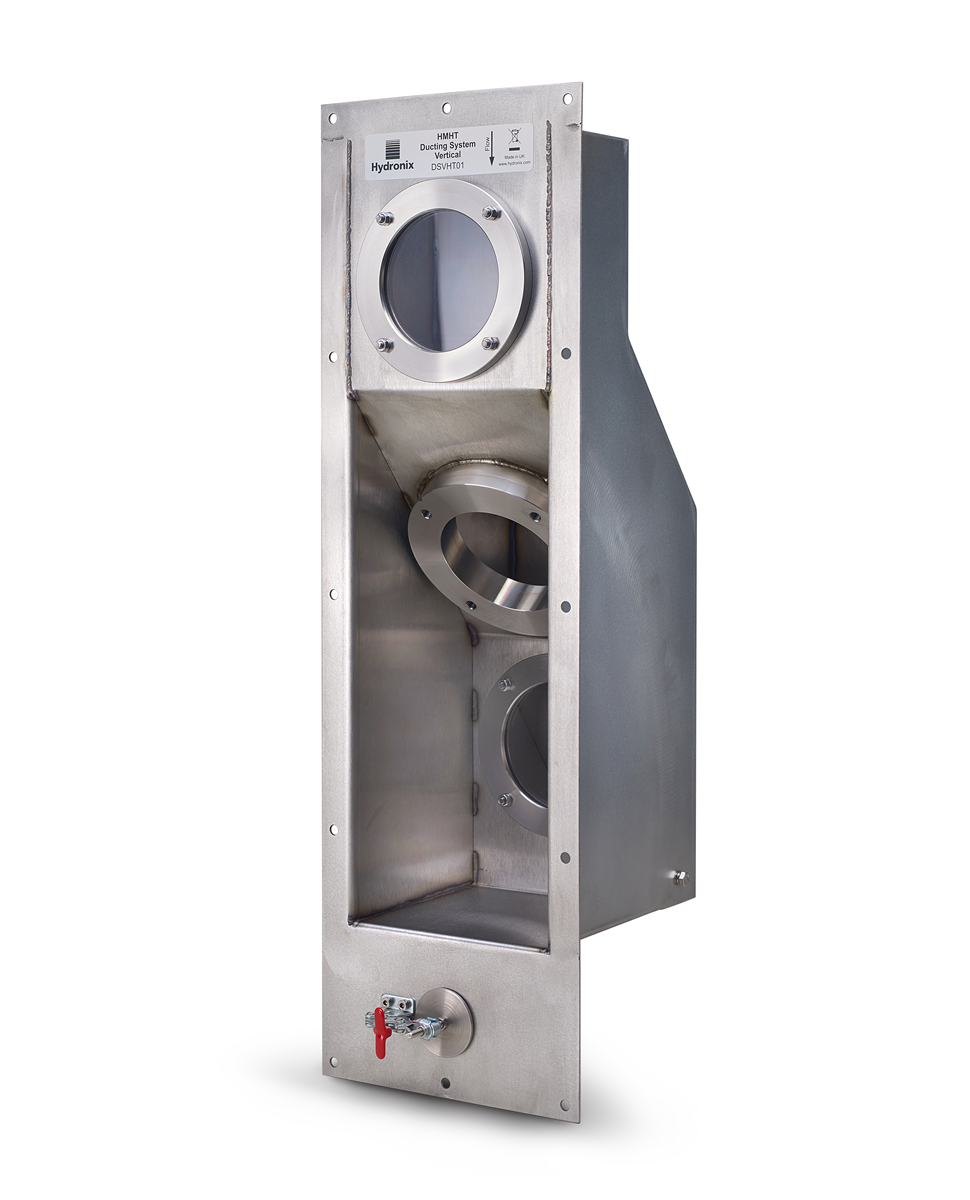

  • DSVHT01 HMHT Ducting System – Vertical.

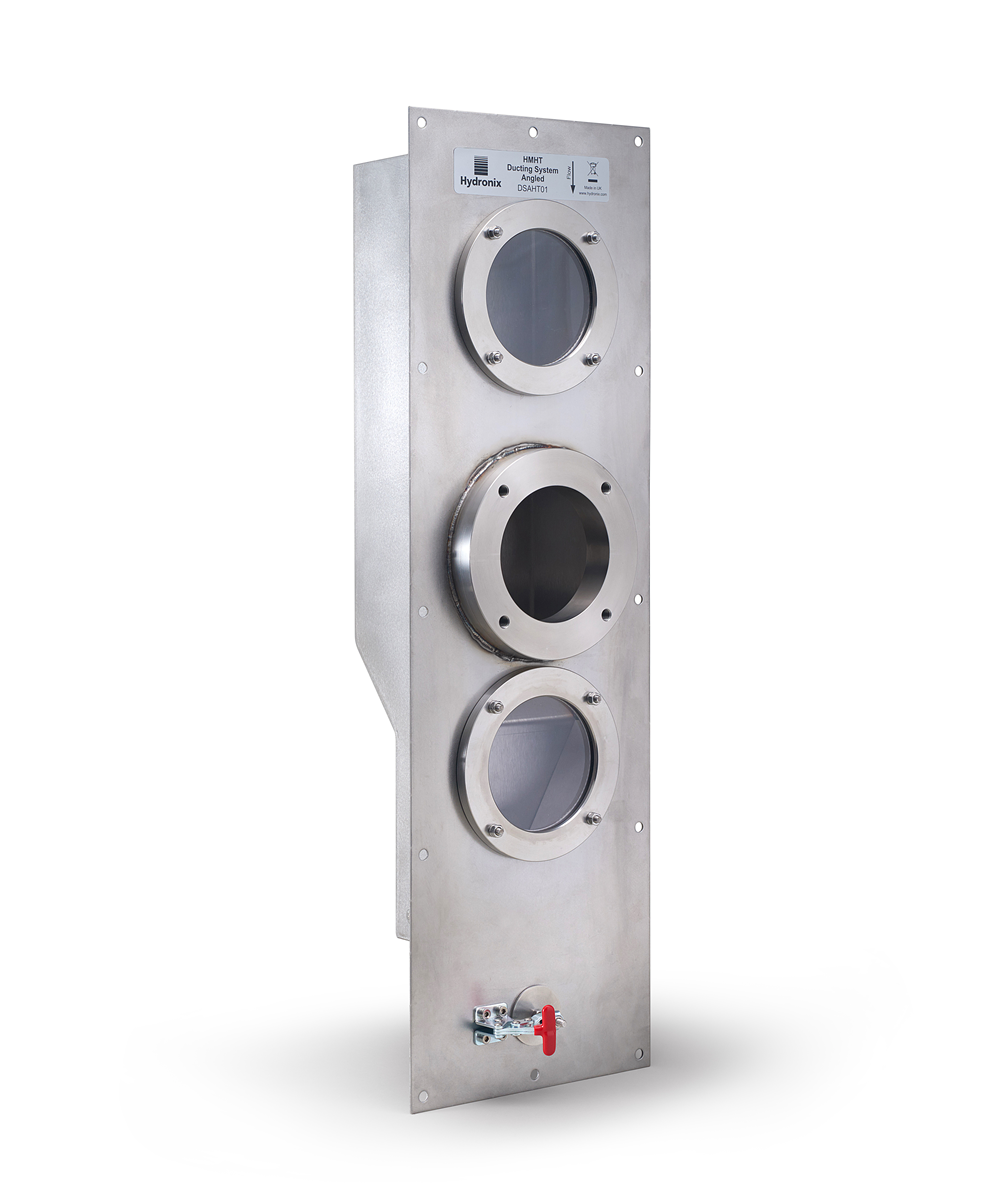

  • DSAHT01 HMHT Ducting System – Angled.

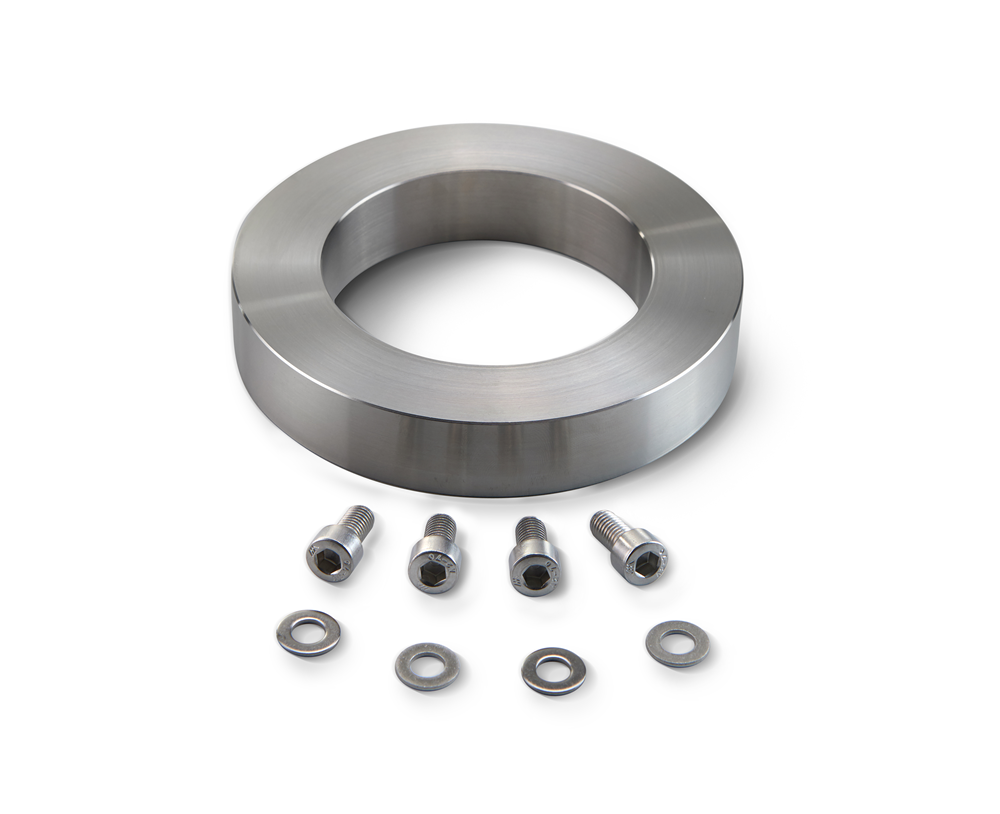

  • 4010 HMHT Fixing Plate.

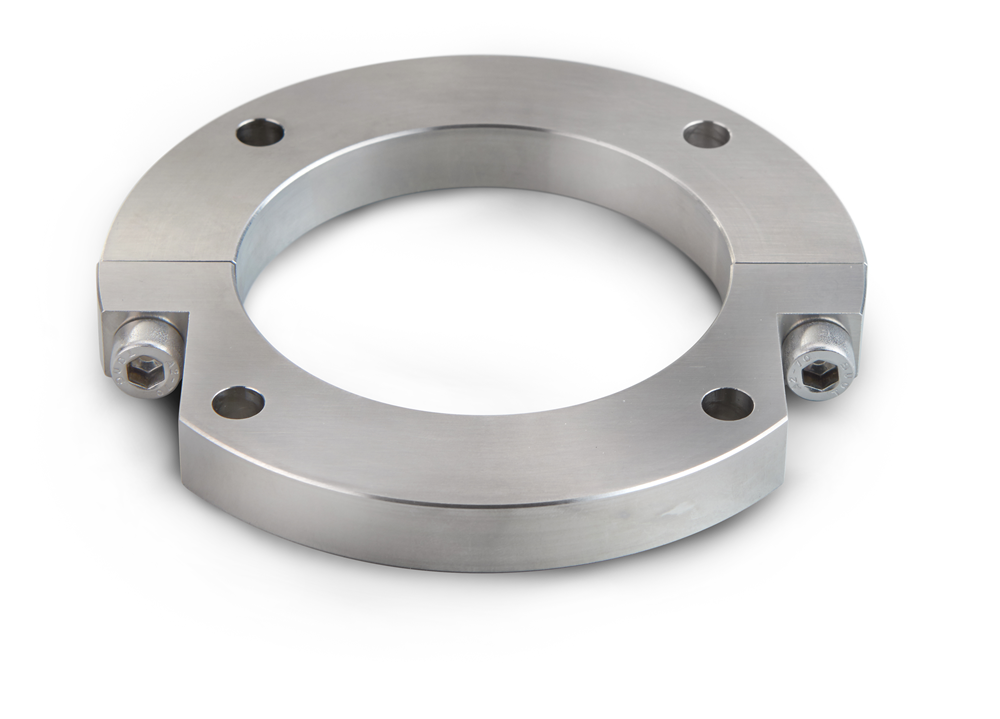

  • 4020 HMHT Clamp Ring (includes HMHT Fixing Plate Bolts)

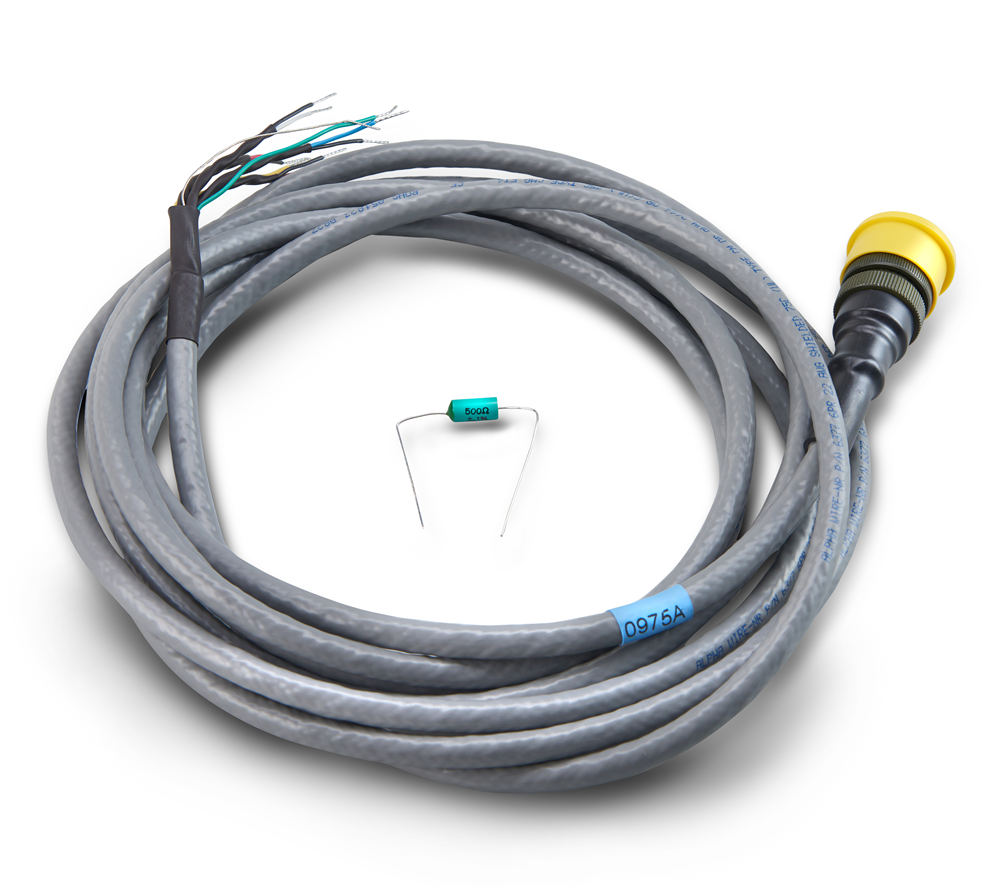

  • 0975A 4m Sensor Cable

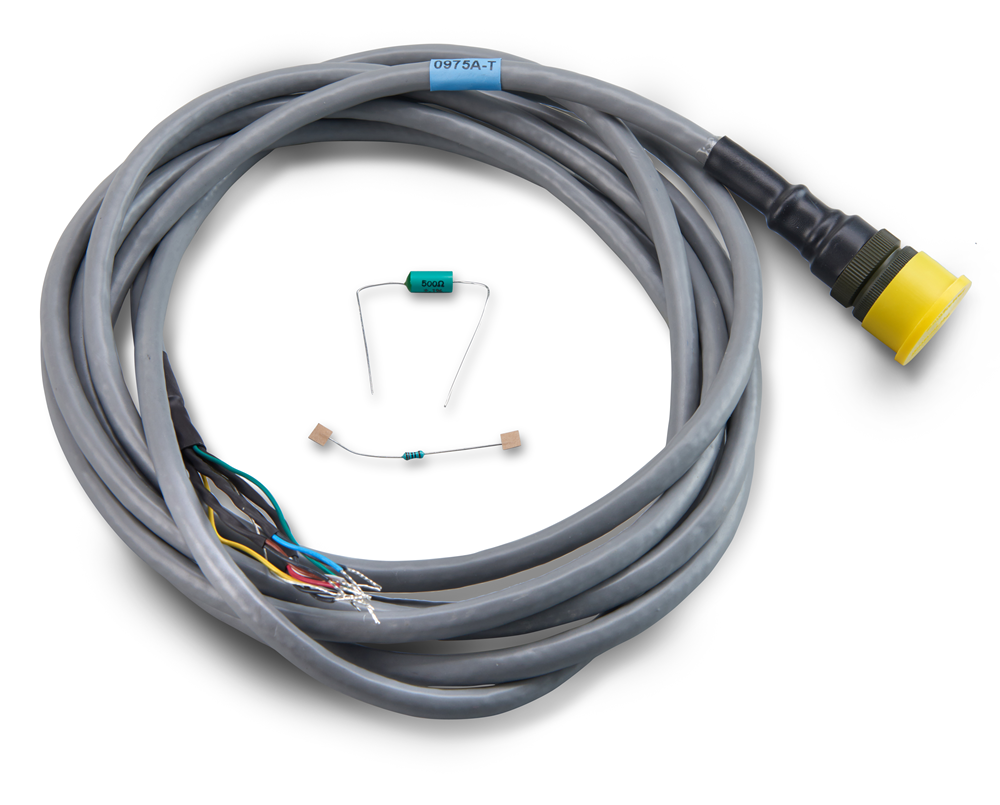

  • 0975AT Sensor Cable with Network Termination (4, 10, 25 and 50m)
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables

Enquire about Hydro-Mix HT

Support

Check out our technical resources for self-help.
For further support with your Hydronix installation, please contact our friendly support team.
