Installation Points:
- Unit can be installed in an operator panel or in the Hydronix steel enclosure.
Unique Key Features:

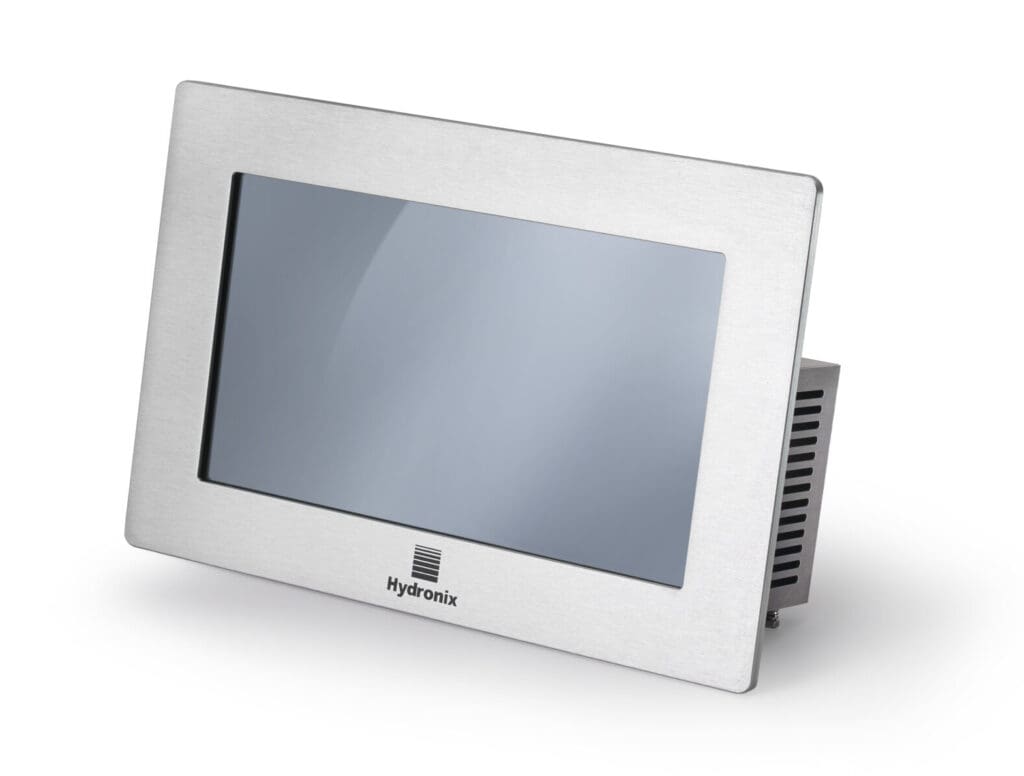

- 10.1" touch screen system to view data and manage Hydronix Sensors.
- Connects a network of up to 16 Hydronix sensors with multiple systems simultaneously.
- Easy to install in new or existing systems
- Live display to view measurements of up to 6 sensors.
- Calibrate and configure Hydronix sensors remotely.
- 256 calibrations per sensor.

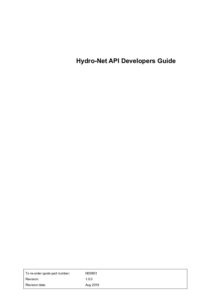

- Ethernet Port with web browser interface / Web API.

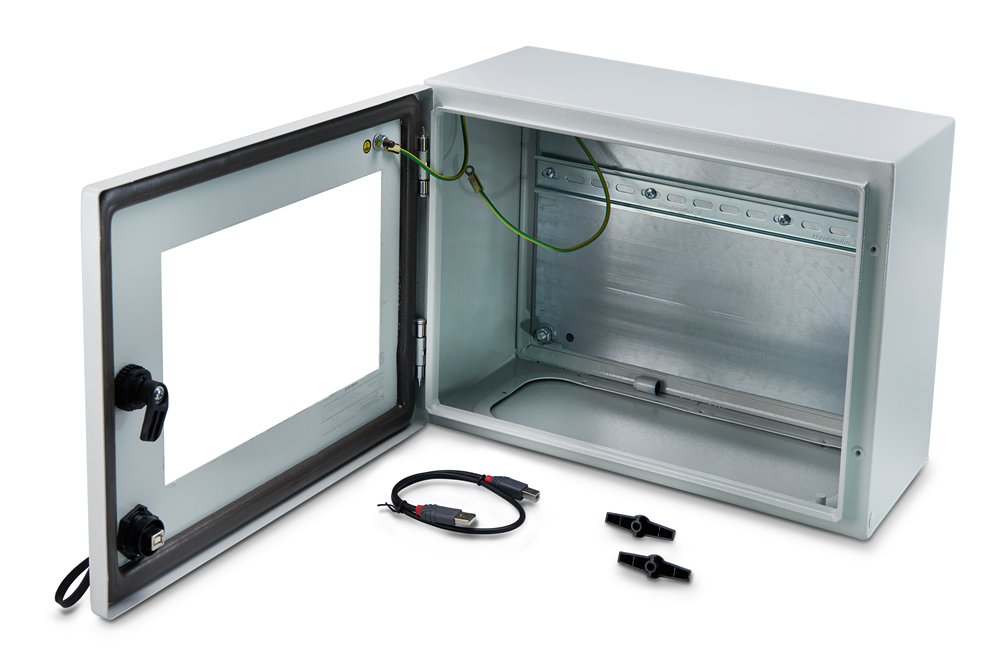

- 1175 HV05 Wall Mount Enclosure

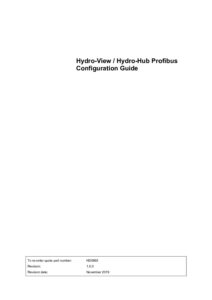

- 1187 PROFIBUS Module

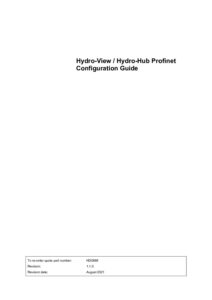

- 1189 PROFINET Module

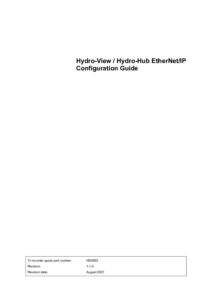

- 1188 Ethernet/IP Module
- 1190 Digital Input Expansion Card
Modbus to control system
Input / Output connections
Recommended field cabling:
- Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
- Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
- Recommended cable types: Belden 8306, Alpha 6373
- Maximum cable run: 100m, separate to any heavy equipment power cables
