安装点:
- 本装置可以安装在操作面板上或 Hydronix 钢机柜中。
独特重要功能:

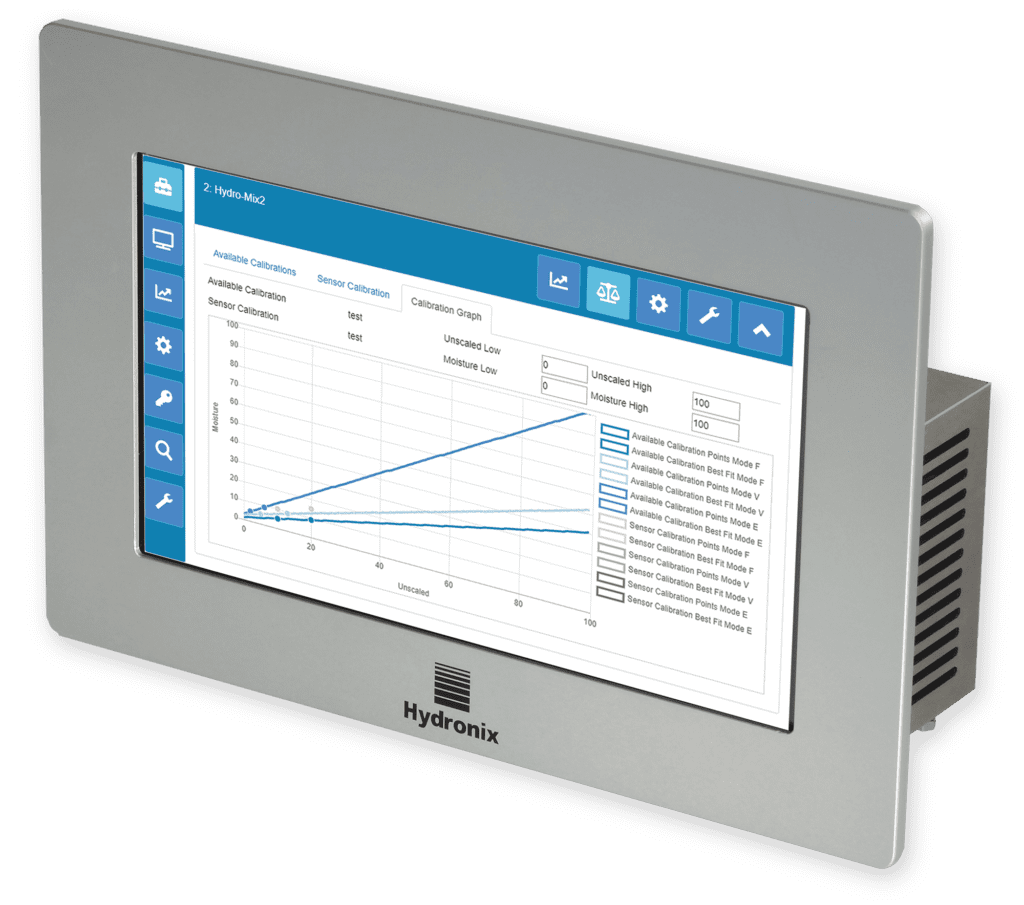

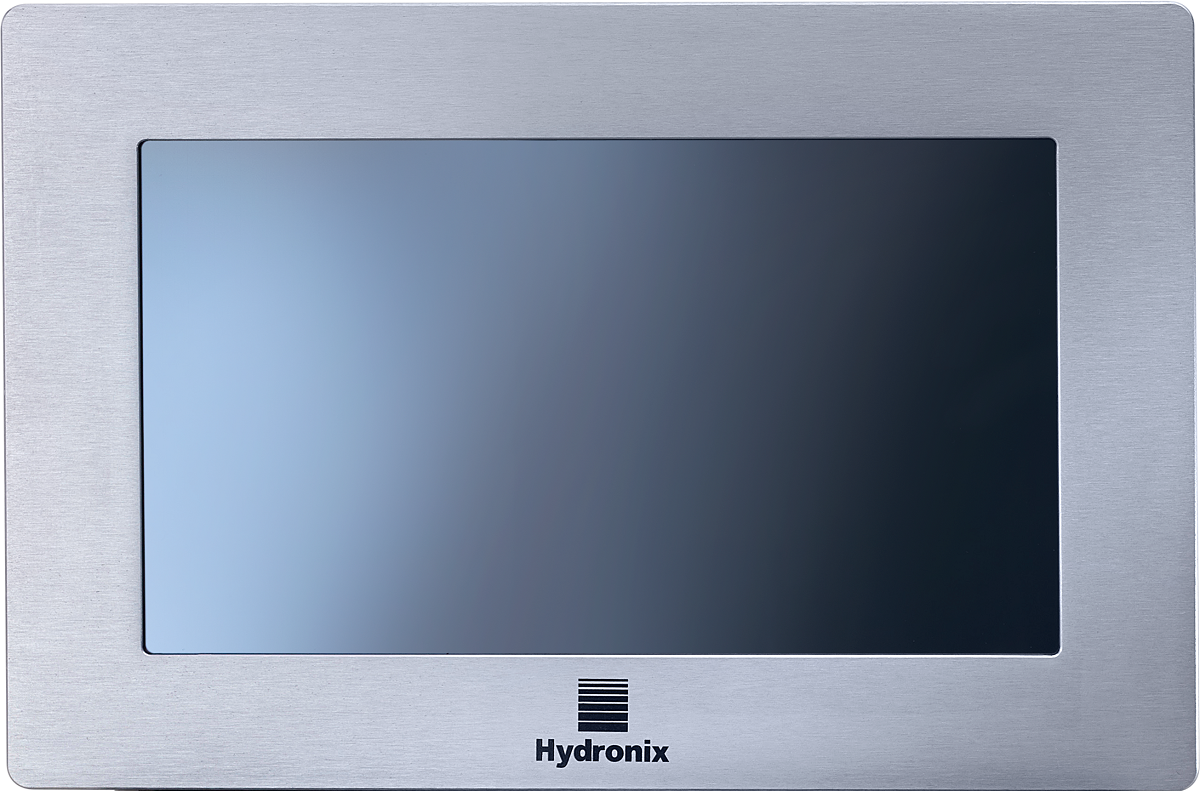

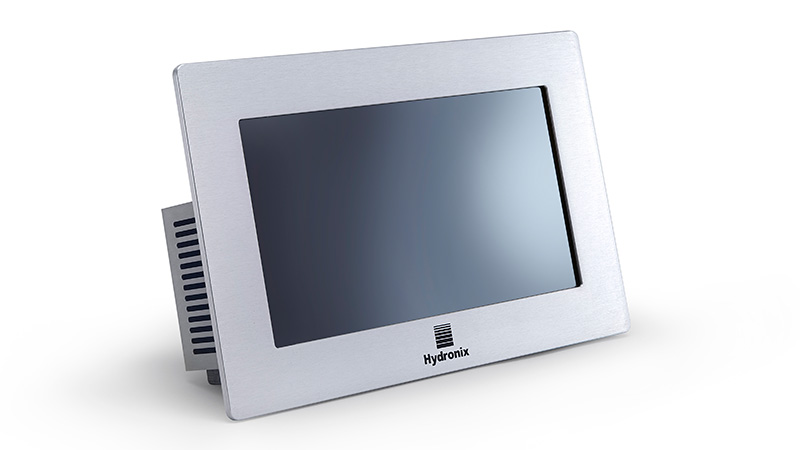

- 10.1 英寸触屏系统，可查看数据并管理 Hydronix 传感器。
- 可同时将多达 16 个 Hydronix 传感器的网络与多个系统连接在一起。
- 可轻松安装在新系统或现有系统中
- 实时显示可查看多达 6 个传感器的测量值。
- 远程校准和配置 Hydronix 传感器。
- 每个传感器 256 次校准。
- 以太网端口，带有网页浏览器界面/网页 API。
- 1175 HV05 壁挂式机柜
- 1187 PROFIBUS 模块
- 1189 PROFINET 模块
- 1188 以太网/IP 模块
- 1190 数字输入扩展卡
- Digital Technology
- Digital technology provides precise, linear moisture measurement.
- Advanced Digital Signal Processing
- The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
- Measurement Modes
- Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
- Fully Temperature Compensated Measurement
- The sensor internally adjusts for mechanical changes due to temperature fluctuations
- Easy to Interface
- Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
- Fast Measurement
- Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
- Temperature Measurement
- Temperature output is available to provide a readout of material temperature.
- Accuracy of Measurement
- All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
- Sensor Configuration
- Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
- Calibration
- The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
- Simple Power Requirements
- The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus，用于控制系统
输入/输出连接
推荐的现场布线方式:
- 六对双绞线（共 12 芯）屏蔽电缆，带 22 AWG、0.35mm2 的导体
- 屏蔽：编织屏蔽层（最低 65% 的覆盖面积）加铝/聚酯薄膜
- 推荐的电缆类型：Belden 8306, Alpha 6373
- 电缆最大长度：100m，与其他重型设备供电电缆区分
