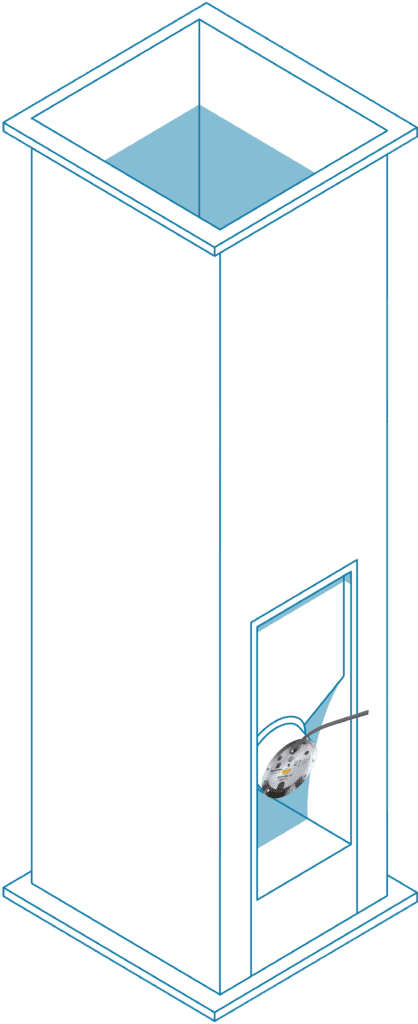

管道系统
- 可安装在较大的管道或斜槽中，为测量形成一致的物料流。
螺旋传送机
- 位于桨片上方，与垂直方向成 30°。
单轴/双轴搅拌机
- 位于桨片上方，与垂直方向成 30°。如果无法实现这一点，可以置于桨片下方。
- 5010 HMXT 固定板套件（固定板、螺栓和 O 型圈），必需
- 5125 Hydro-Skid 皮带延长导流板
- DSV02 HMXT 管道系统 – 垂直
- DSA02 HMXT 管道系统 – 倾斜
- HSXT01 Hydro-Skid 固定板，用于将 HMXT 安装到带式传送机的流动物料上
- 5015 HMXT 固定板
- 5020 HMXT O 型圈
- 5025 HMXT 固定板螺栓
- 5030 HMXT 堵头 – 用于在移除 HMXT 时形成密封
- Digital Technology
- Digital technology provides precise, linear moisture measurement.
- Advanced Digital Signal Processing
- The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
- Measurement Modes
- Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
- Fully Temperature Compensated Measurement
- The sensor internally adjusts for mechanical changes due to temperature fluctuations
- Easy to Interface
- Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
- Fast Measurement
- Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
- Temperature Measurement
- Temperature output is available to provide a readout of material temperature.
- Accuracy of Measurement
- All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
- Sensor Configuration
- Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
- Calibration
- The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
- Simple Power Requirements
- The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus，用于控制系统
输入/输出连接
推荐的现场布线方式:
- 六对双绞线（共 12 芯）屏蔽电缆，带 22 AWG、0.35mm2 的导体
- 屏蔽：编织屏蔽层（最低 65% 的覆盖面积）加铝/聚酯薄膜
- 推荐的电缆类型：Belden 8306, Alpha 6373
- 电缆最大长度：100m，与其他重型设备供电电缆区分
