Hydro-Mix XT

Moisture sensor: Flush mount for mixers and conveyors

Measurement:

  • Moisture
  • Ambient temperature

Typical Materials:

  • Animal feed
  • Grain
  • Biomass
  • Organic material
  • Agricultural material

Unique Key Features:

  • Compact with a stainless steel body and a ceramic faceplate.
  • Choice of measurement modes for optimum sensor performance.
  • Fitted flush in the floor of mixers, ducting or conveyors.

Ducting System

  • Install into a larger duct or chute to create a consistent material flow for measurement.

Screw Conveyor

  • Position on the upstroke of the blade at 30° from vertical.

Single / Twin Shaft Mixer

  • Position on the end wall of the mixer, 30° from vertical.
  • 5010 HMXT Fixing Plate Kit (Fixing Plate, Bolts and O-Ring), required

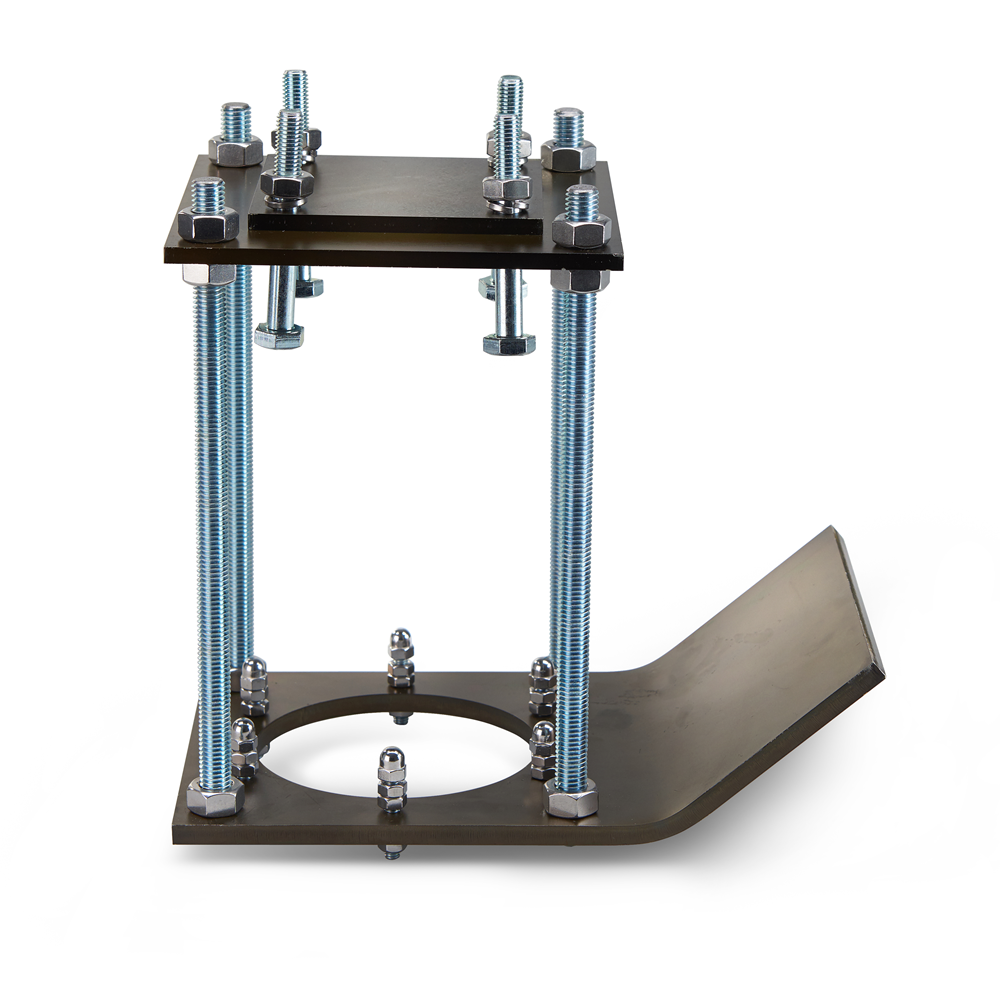

  • 5125 Hydro-Skid Belt Flow Extension Plate

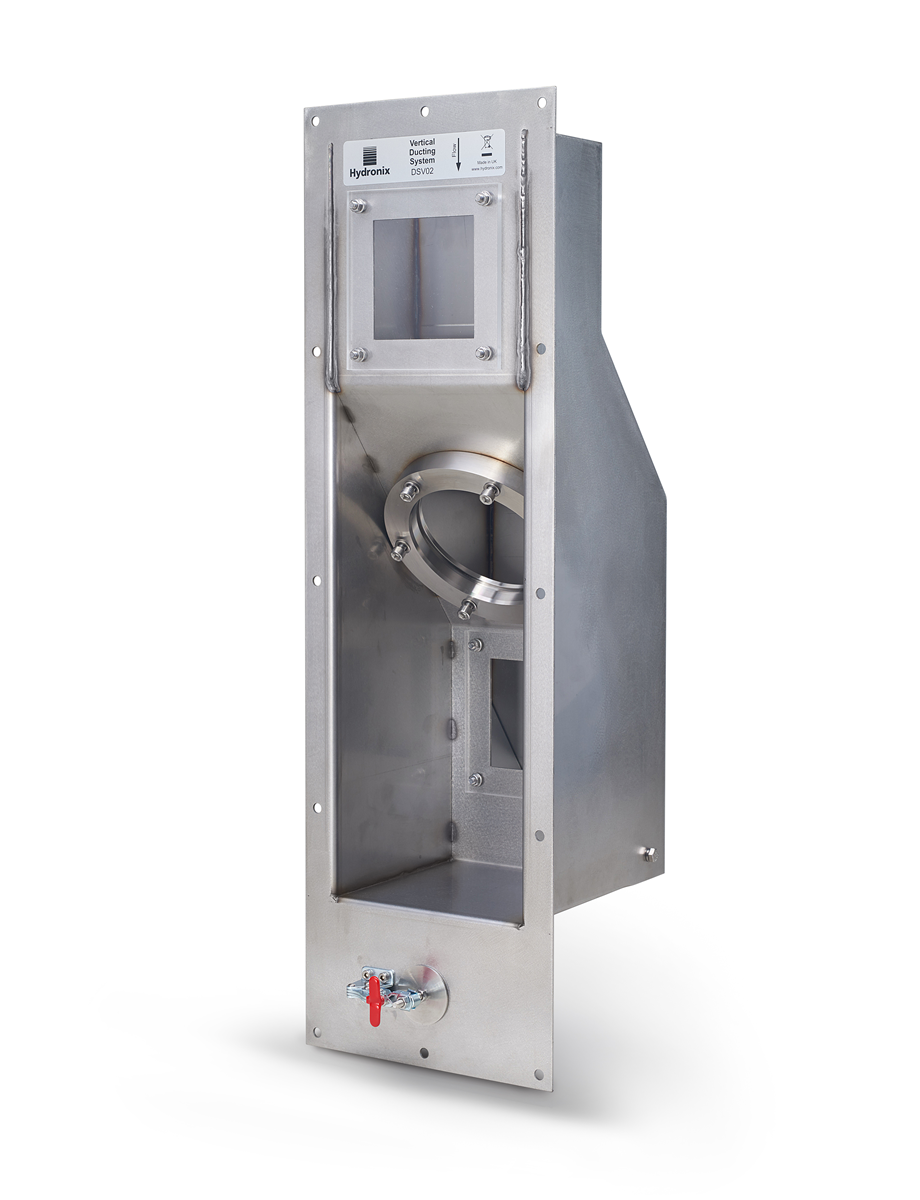

  • DSV02 HMXT Ducting System – Vertical

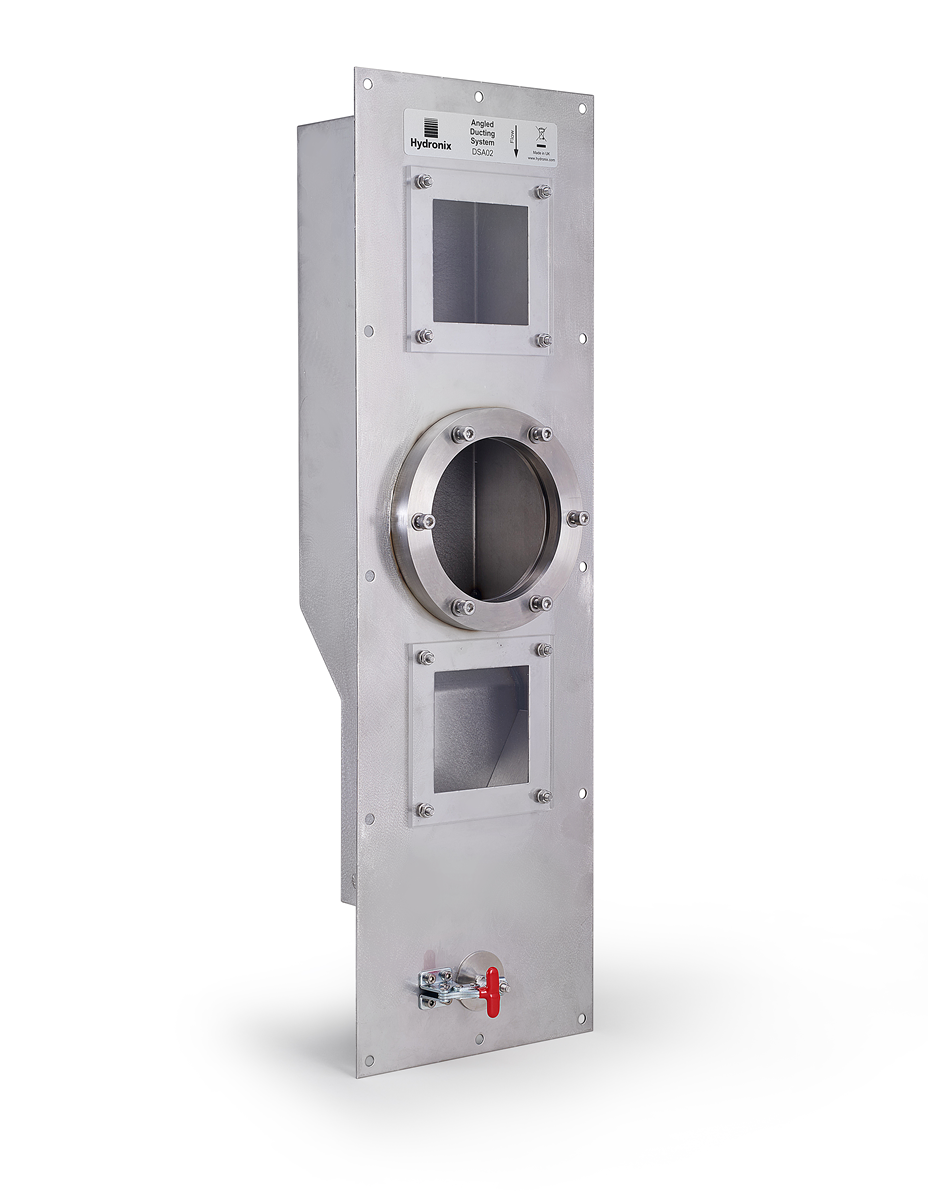

  • DSA02 HMXT Ducting System – Angled
  • HSXT01 Hydro-Skid fixed plate for mounting HMXT on flowing material on a belt conveyor
  • 5015 HMXT Fixing Plate
  • 5020 HMXT O-Ring
  • 5025 HMXT Fixing Plate Bolts
  • 5030 HMXT Blanking Plug – used to create a seal if HMXT is removed
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables
