Hydro-Mix HT-EX

Moisture sensor: Flush mount. Process temperatures up to 120°C (Zone 20)

Measurement:

  • Moisture
  • Ambient temperature

Typical Materials:

  • Animal feed
  • Grain
  • Biomass
  • Organic material
  • Agricultural material

Unique Key Features:

  • High temperature sensor for operating temperature range of up to 120°C, certified for use in ATEX, IECEx and NEC/CSA Explosive Atmosphere (Dust ), suitable for Zone 20 process environments.
  • Fitted flush before or after dryers, the floor of mixers, ducting or conveyors.

Screw Conveyor

  • Position on the upstroke of the blade at 30° from vertical.

Single/Twin Shaft Mixer

  • Position on the end wall of the mixer, 30° from vertical.

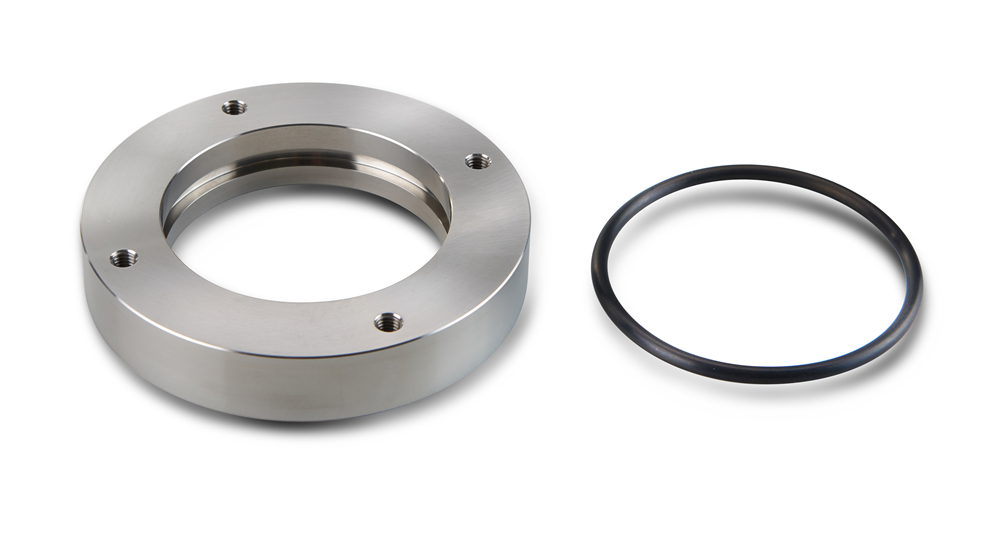

  • 4100 HMHT-EX Fixing Plate
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables
