Measurement:
- Moisture
- Ambient temperature
Typical Materials:
- Animal feed
- Grain
- Biomass
- Organic material
- Agricultural material
Unique Key Features:

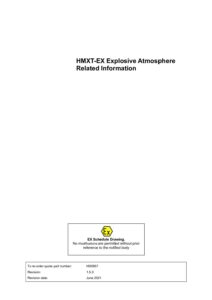

- Sensor certified for use in ATEX, IECEx and NEC/CSA Explosive Atmosphere (Dust), suitable for Zone 20 process environments, Zone 21 external to process.

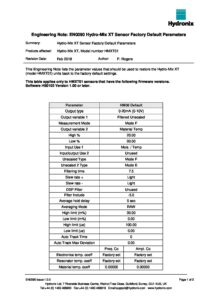

- Choice of measurement modes for optimum sensor performance.

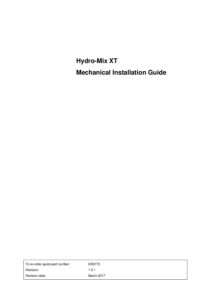

- Fitted flush in the floor of mixers, ducting or conveyors.
Ducting System
- Install into a larger duct or chute to create a consistent material flow for measurement.
Screw Conveyor
- Position on the upstroke of the blade at 30° from vertical.
Single / Twin Shaft Mixer
- Position on the end wall of the mixer, 30° from vertical.

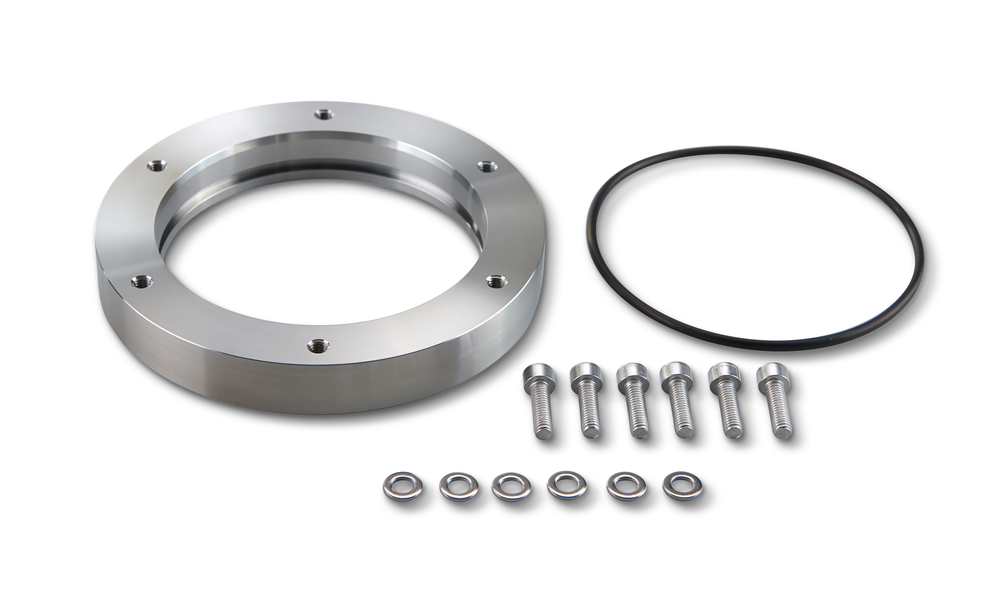

- 5010 HMXT Fixing Plate Kit (Fixing Plate, Bolts and O-Ring), required

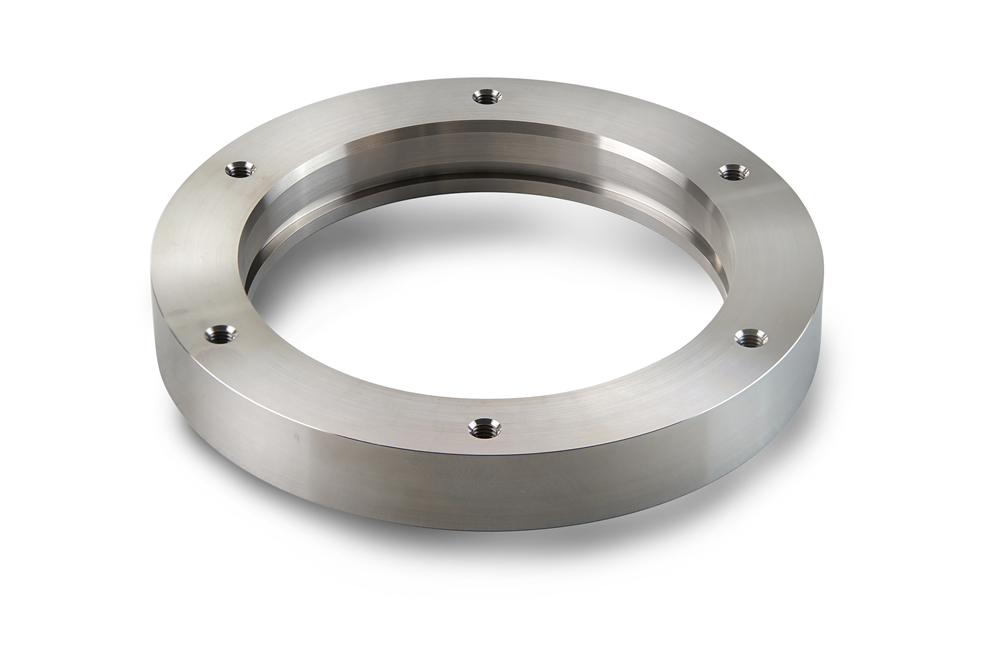

- 5015 HMXT Fixing Plate

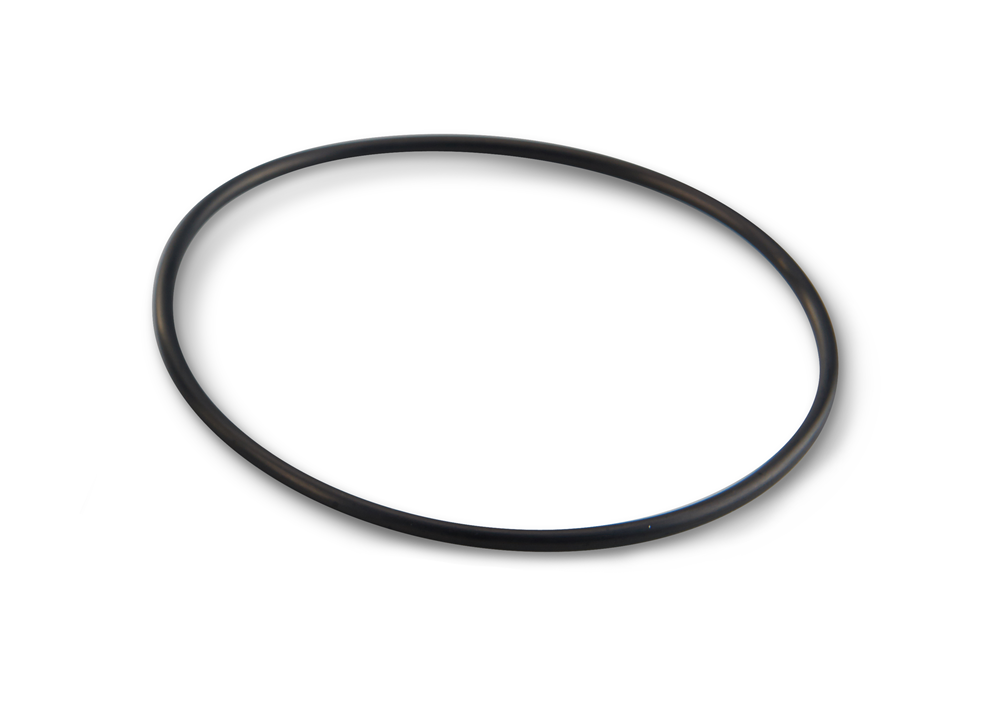

- 5020 HMXT O-Ring

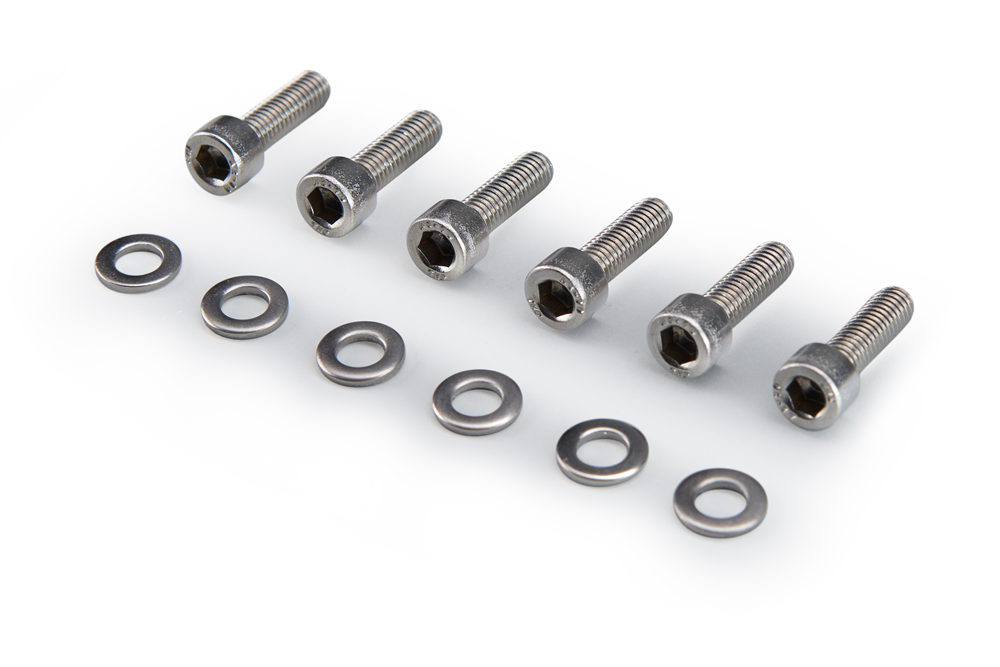

- 5025 HMXT Fixing Plate Bolts
- 5030 HMXT Blanking Plug – used to create a seal if HMXT is removed
Modbus to control system
Input / Output connections
Recommended field cabling:
- Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
- Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
- Recommended cable types: Belden 8306, Alpha 6373
- Maximum cable run: 100m, separate to any heavy equipment power cables
