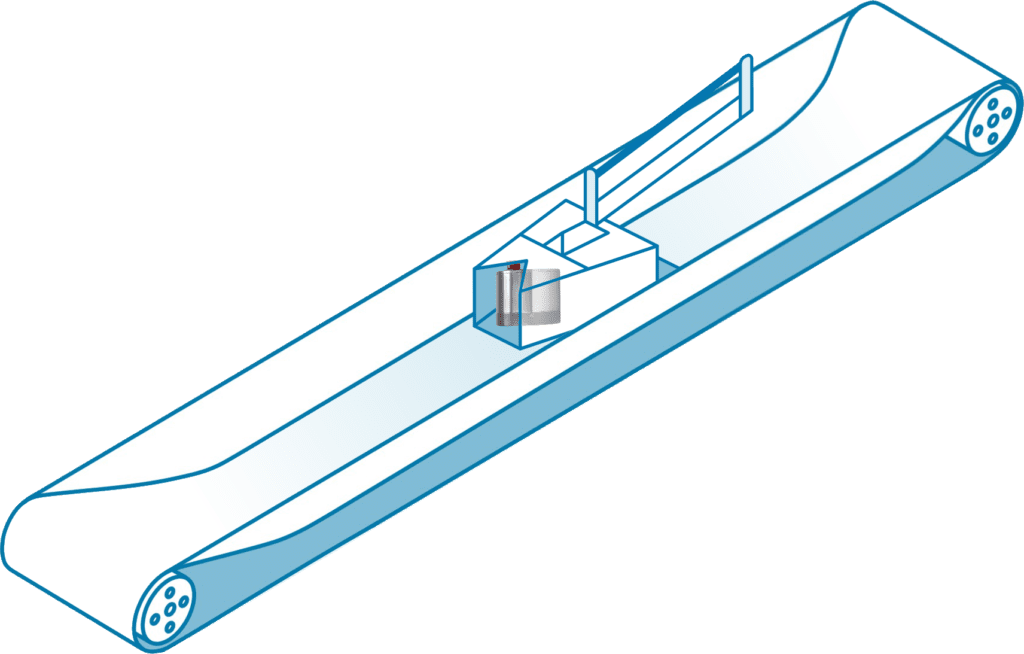

带式传送机
- 可安装在沿传送带移动的物料表面上方的 Hydro-Skid 中。

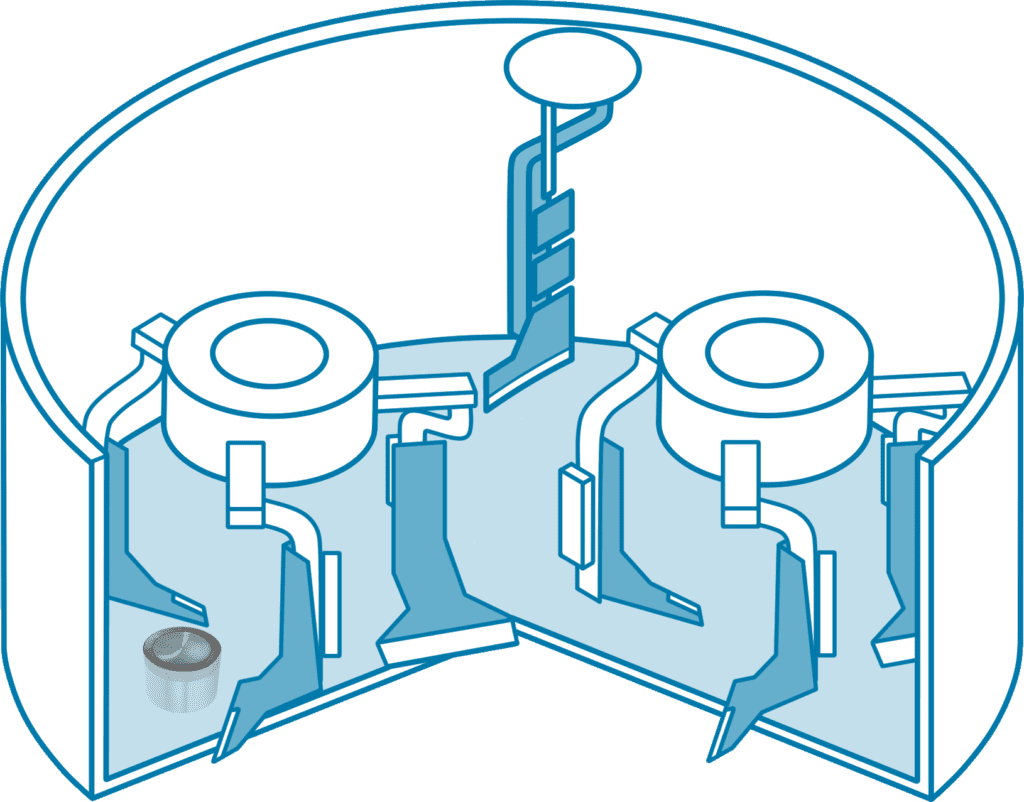

行星式搅拌机
- 可安装在搅拌机的底面。

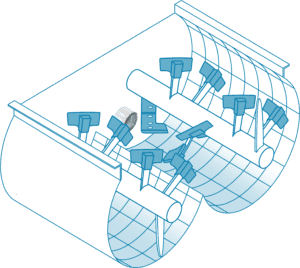

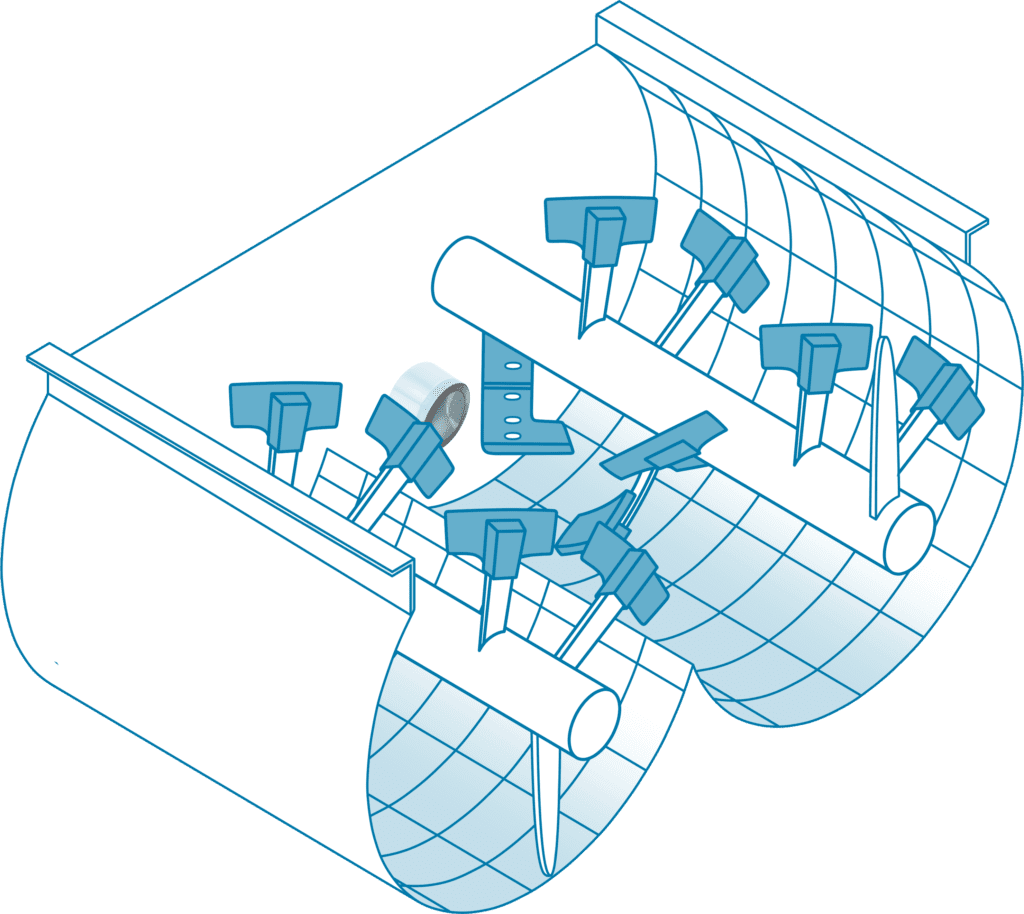

单轴/双轴搅拌机
- 位于桨片上方，与垂直方向成 30°。如果无法实现这一点，可以置于桨片下方。

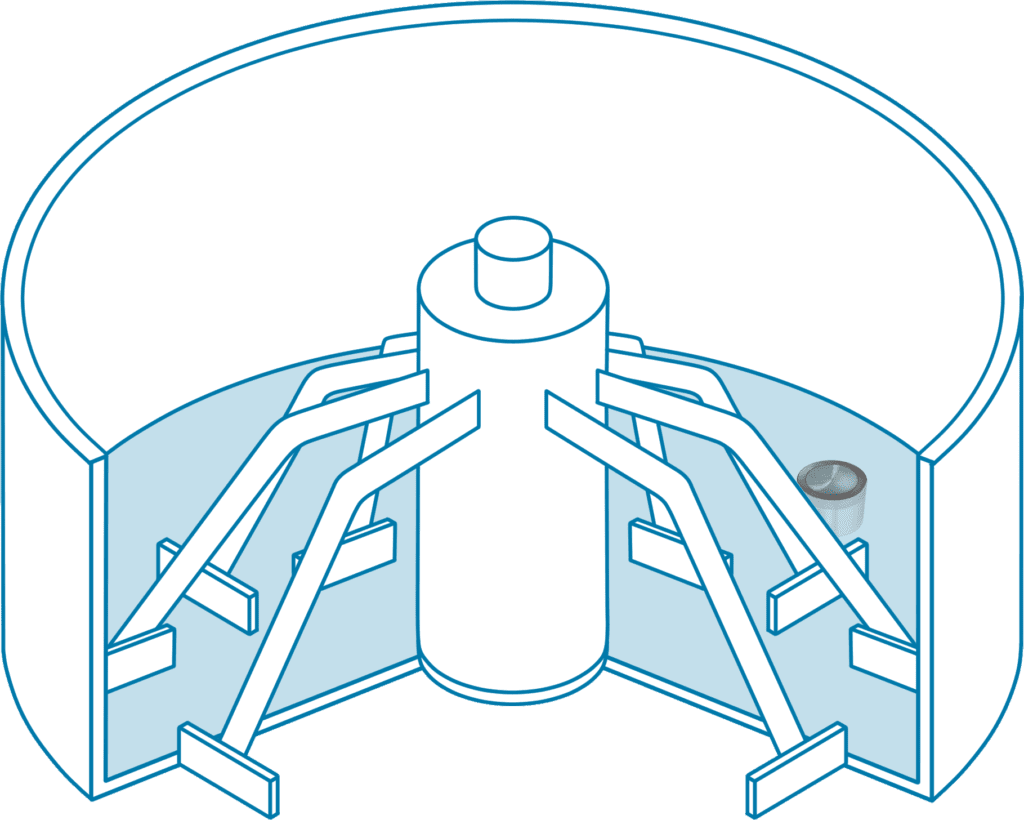

涡轮搅拌机
- 位于搅拌机的底面，从搅拌机中心到侧壁的 2/3 距离处。

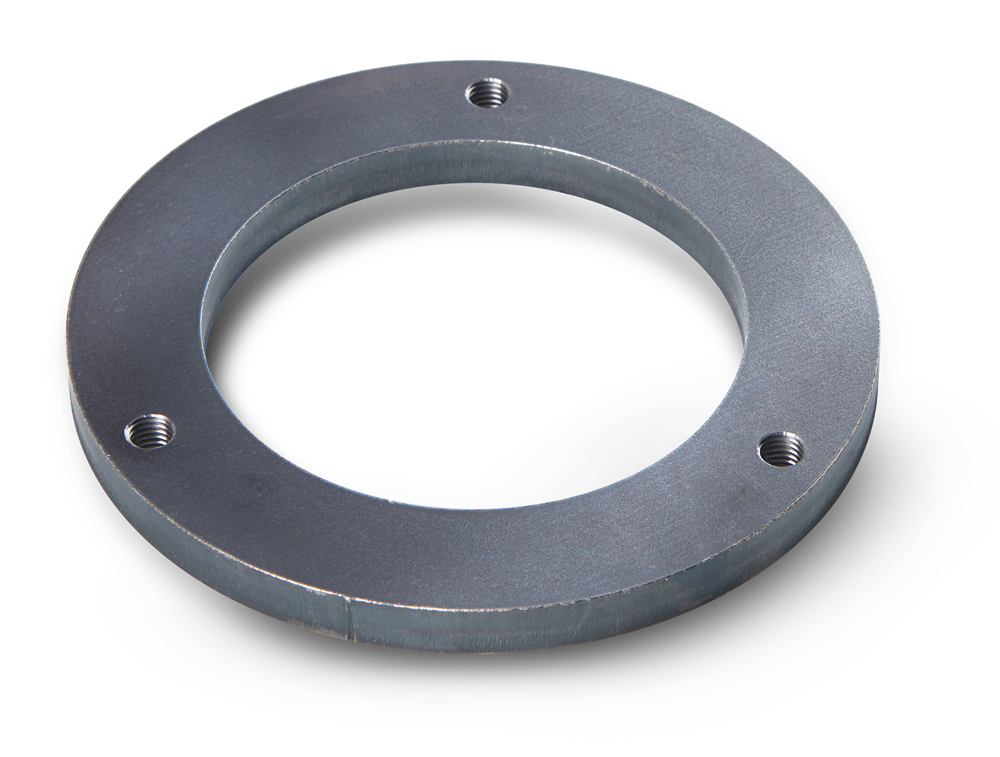

- 0021 Hydro-Mix – 固定板，低碳钢
- 0960 Hydro-Mix – 固定板（316 不锈钢）
- HS02 Hydro-Skid 缩放仪臂，用于将 Hydro-Mix 传感器安装在传送机的流动物料上
- 0033 Hydro-Mix – 可调节卡圈（需要时备用）
- 0035 Hydro-Mix 挡板

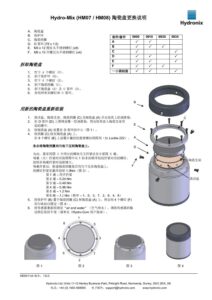

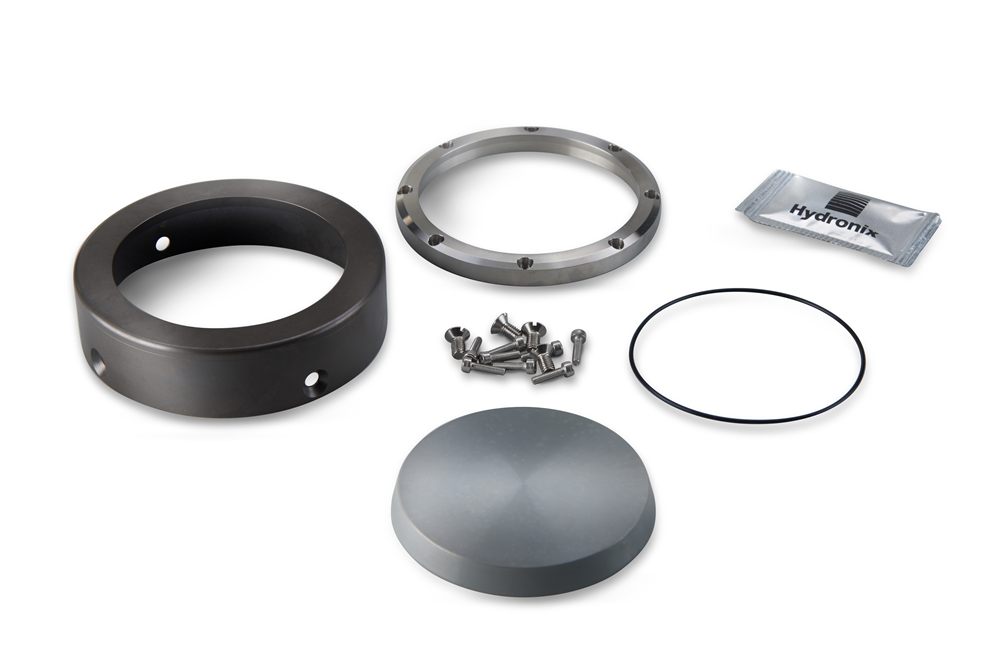

- 0900 Hydro-Mix 更换陶瓷盘和保护环套件（包括陶瓷挡圈和所有固定件）

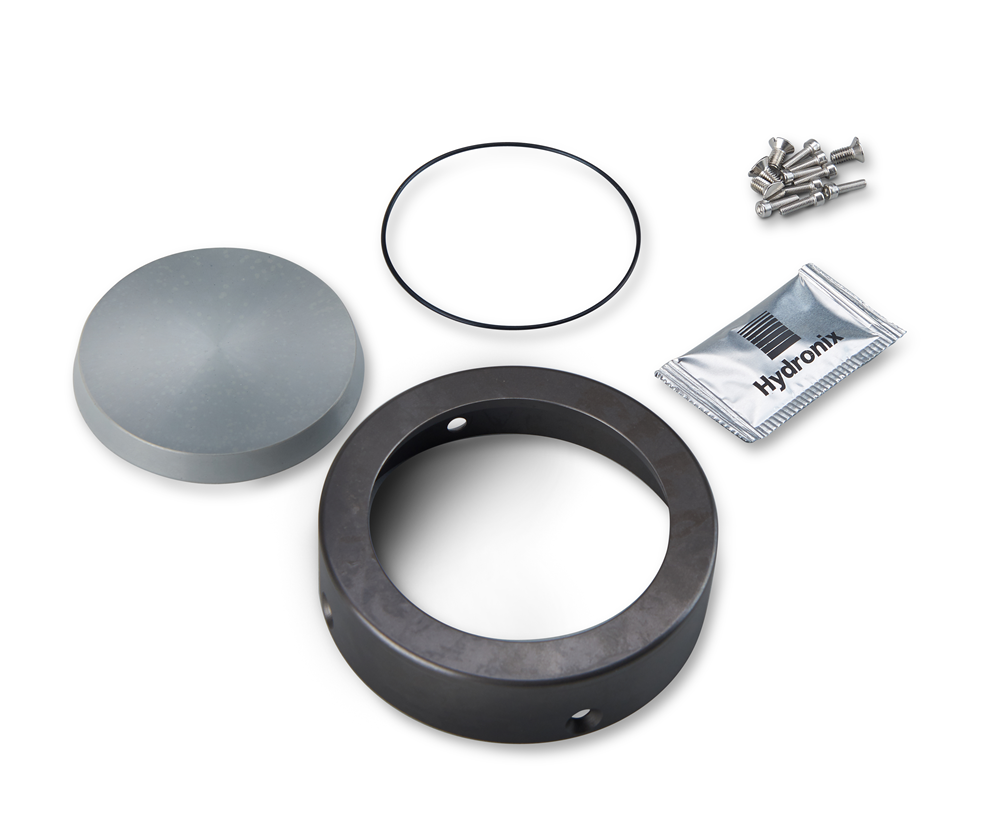

- 0910 Hydro-Mix 更换陶瓷盘和保护环套件
- 0930 Hydro-Mix 更换保护环，带固定件

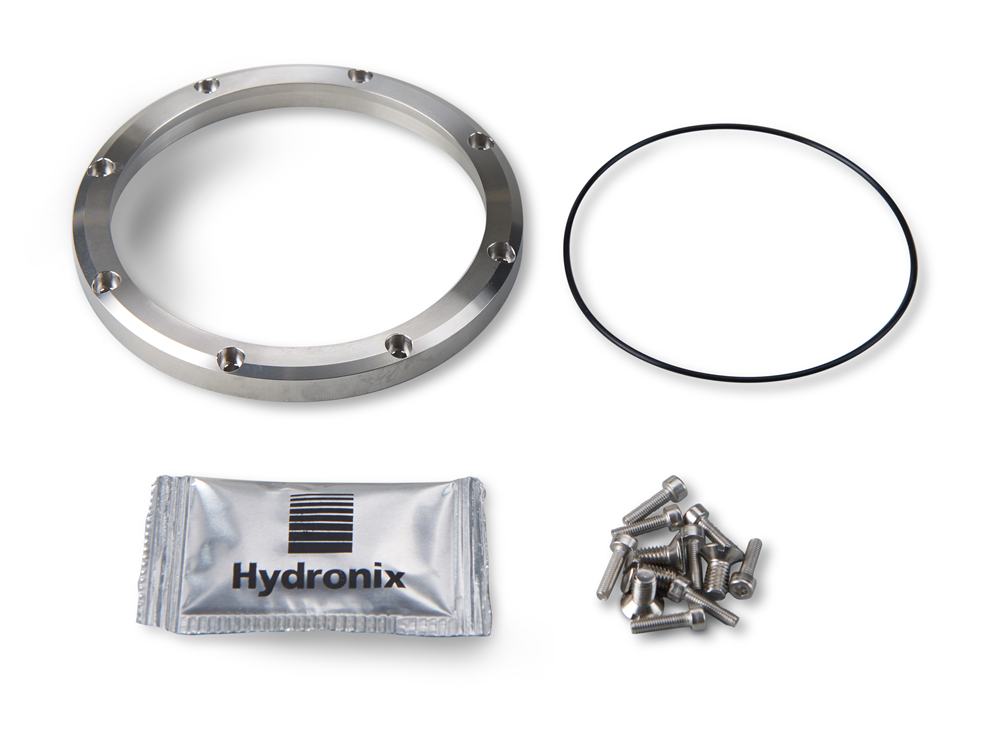

- 0935 Hydro-Mix 更换陶瓷挡圈套件（包括螺钉、“O”型环和润滑脂）
- 0975A 4m 传感器电缆
- 0975AT 带网络终端的传感器电缆（4、10、25 和 50m）
- Digital Technology
- Digital technology provides precise, linear moisture measurement.
- Advanced Digital Signal Processing
- The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
- Measurement Modes
- Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
- Fully Temperature Compensated Measurement
- The sensor internally adjusts for mechanical changes due to temperature fluctuations
- Easy to Interface
- Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
- Fast Measurement
- Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
- Temperature Measurement
- Temperature output is available to provide a readout of material temperature.
- Accuracy of Measurement
- All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
- Sensor Configuration
- Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
- Calibration
- The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
- Simple Power Requirements
- The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus，用于控制系统
输入/输出连接
推荐的现场布线方式:
- 六对双绞线（共 12 芯）屏蔽电缆，带 22 AWG、0.35mm2 的导体
- 屏蔽：编织屏蔽层（最低 65% 的覆盖面积）加铝/聚酯薄膜
- 推荐的电缆类型：Belden 8306, Alpha 6373
- 电缆最大长度：100m，与其他重型设备供电电缆区分
