Measurement:
- Moisture
- Ambient temperature
Typical Materials:
- Sand
- Stone
- Recycled asphalt pavement (RAP)
- Other aggregates
Unique Key Features:
- Rugged, hard-wearing design for abrasive materials
- Simple installation into aggregate bins
- Shape ensures good compaction of material presented for accurate measurement
Bin or Silo
- Mount in the flow of material inside the bin or underneath the bin gate.
Conveyor belt
- Mount on belt conveyors.
Planetary Mixer
- Mount onto the rotating scraper blade arm.

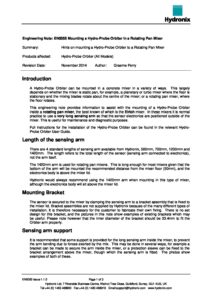

Rotating Pan Mixer
- Mount with replaceable arm in the flow of material and the head unit above the material.
Static Pan Mixer
- Mount onto the rotating scraper blade arm.
Turbo Mixer
- Mount onto the rotating scraper blade arm.
0062 Hydro-Probe Orbiter Fixing Kit with (M10) bolts, washers, nuts to connect the clamping block
0580 Hydro-Probe Orbiter Protection Sleeves
0582 ORBA2 Rear Protection Plate, pack of 5
0584 Ceramic Protection Ring for Sensing Arm ORBA2, pack of 2 (Optional upgrade from Stainless Steel version part 0586)
0586 Protection Ring in Steel for Sensing Arm ORBA2, Pack of 5
0975A 4m Sensor Cable
0975AT Sensor Cable with Network Termination (4, 10, 25 and 50m)
0062 Hydro-Probe Orbiter Fixing Kit with (M10) bolts, washers, nuts to connect the clamping block
0580 Hydro-Probe Orbiter Protection Sleeves
0582 ORBA2 Rear Protection Plate, pack of 5
0584 Ceramic Protection Ring for Sensing Arm ORBA2, pack of 2 (Optional upgrade from Stainless Steel version part 0586)
0586 Protection Ring in Steel for Sensing Arm ORBA2, Pack of 5
0975A 4m Sensor Cable
0975AT Sensor Cable with Network Termination (4, 10, 25 and 50m)
Modbus to control system
Input / Output connections
Recommended field cabling:
- Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
- Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
- Recommended cable types: Belden 8306, Alpha 6373
- Maximum cable run: 100m, separate to any heavy equipment power cables
